Figure 1 of Bowne, Mol Vis 2016; 22:1239-1247.

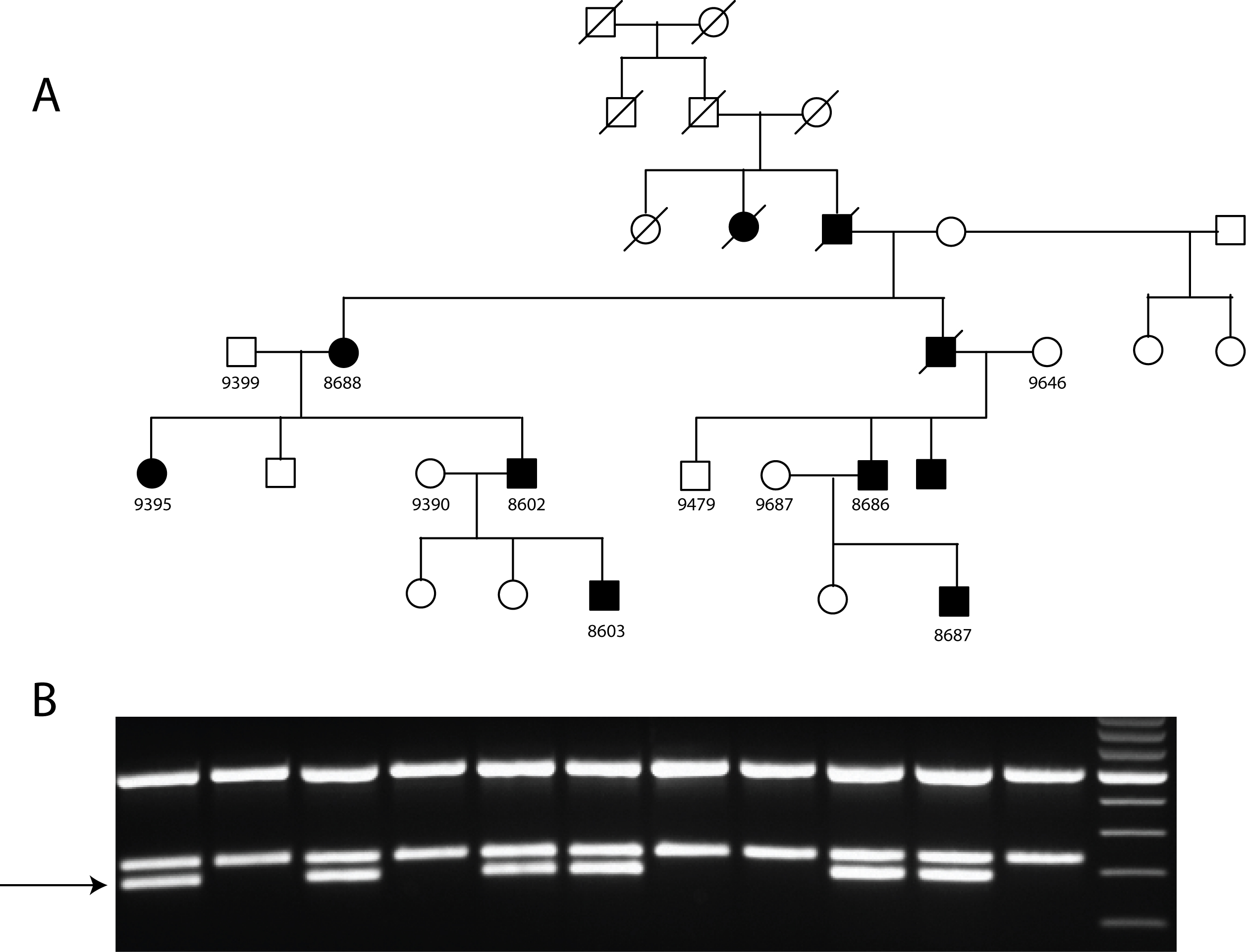

Figure 1. RFS355 pedigree and duplication typing. A: Pedigree of NCMD family RFS355. Circles indicate female individuals while squares indicate male individuals. Diagonal lines indicate a deceased individual. Filled symbols indicate affected individuals while unfilled symbols indicate unaffected individuals. Individual ID numbers are located below the symbols. B: PCR product analysis of the presence or absence of the 69 kb duplication. PCR products of the three amplimers were combined and separated on an agarose gel. Results from each family member are in the lane directly underneath their symbol in the pedigree. The presence of the bottom band (shown by the arrow) indicates these individuals have the duplication on chromosome 6q.
