Figure 6 of Libert, Mol Vis 2016; 22:100-115.

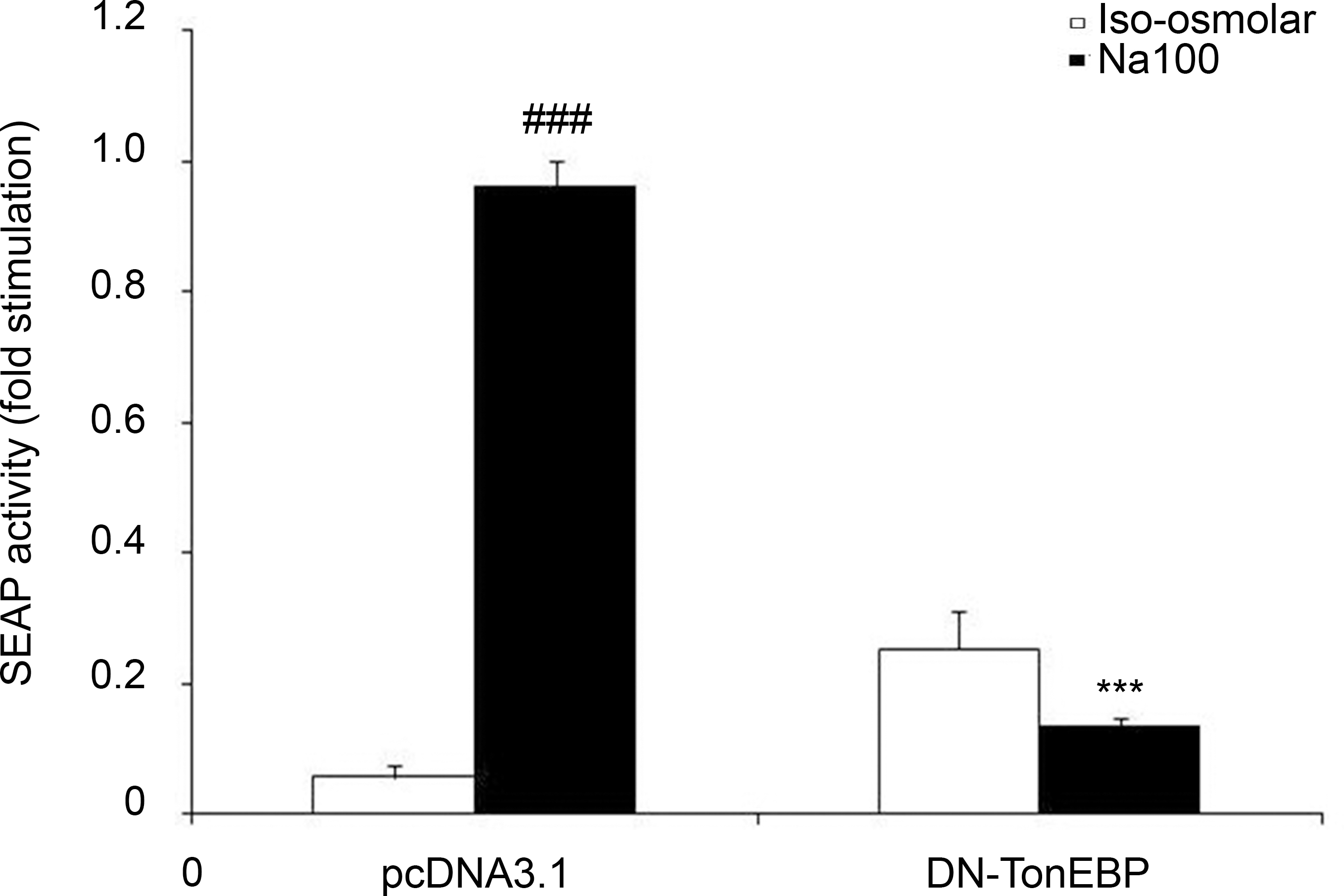

Figure 6. Effects of DN-TonEBP on the transactivation activity of TonEBP. ARPE-19 cells were transiently transfected with either 10 µg of pSEAP-TonE plasmid and 10 µg of pcDNA3.1 plasmid (control plasmid) or with 10 µg of pSEAP-TonE plasmid and 10 µg of DN-TonEBP plasmid, before being incubated for 24 h in the absence (control) or presence of 100 mM additional NaCl (Na100). The activity of secreted embryonic alkaline phosphatase (SEAP) was measured with luminescence in the cell culture supernatant. Data are expressed as relative activity (in fold stimulation) over the iso-osmolar condition and are the mean ± standard error of the mean (SEM; n=3). Statistical analysis was performed with the conformity t test (###p<0.005) that compared the control in Na100 to the control in the iso-osmolar condition, and a paired t test (***p<0.005) was used to compare the dominant negative form of tonicity enhancer binding protein (DN-TonEBP) TonEBP in Na100 to DN-TonEBP in the iso-osmolar condition.
