Figure 7 of Won, Mol Vis 2015; 21:98-xx.

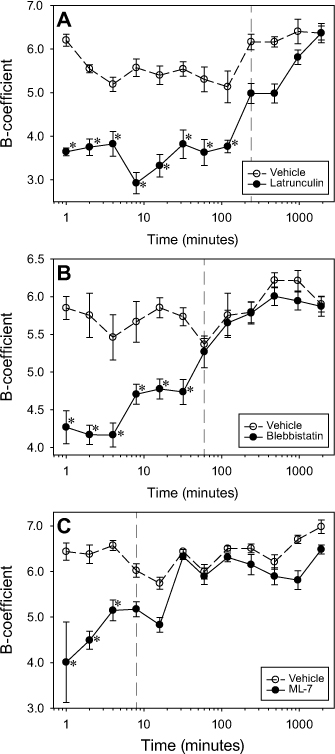

Figure 7. Time course of lenticular stiffness following disruptor removal. Longitudinal recovery effects of (A) 10 µM latrunculin (n = 6), (B) 10 µM blebbistatin (n = 6), and (C) 10 µM ML-7 (n = 6) on lens stiffness compared to vehicle controls. Asterisks (*) indicate significant differences between disruptor- and vehicle-treated lenses.
