Figure 1 of de Sousa Dias, Mol Vis 2015; 21:857-870.

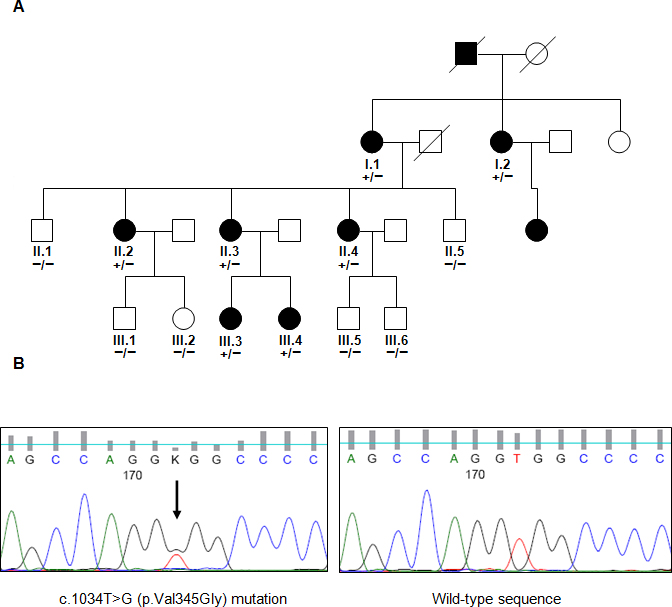

Figure 1. Pedigree and Sanger sequencing of familly RPT100. A: Pedigree of the adRP family RPT100, which carries the mutation p.Val345Gly in RHO. Capillary Sanger sequencing showed either the presence of the mutation (+) or of the wild-type allele (−). Squares and circles represent men and women, respectively. The open symbols represent unaffected family members, while the completely filled symbols represent patients with retinitis pigmentosa (RP). B: Fluorogram representation of the Sanger sequencing of mutation c.1034T>G in the RHO gene.
