Figure 2 of Haque, Mol Vis 2015; 21:224-235.

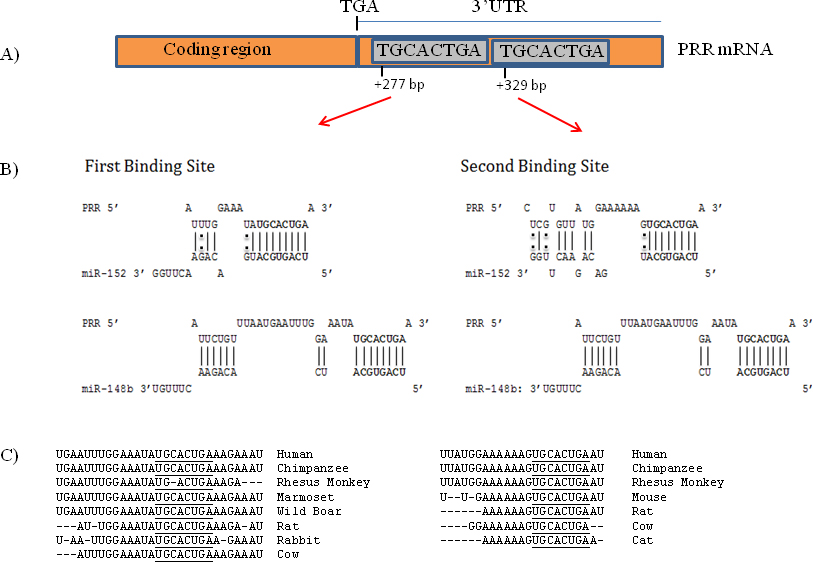

Figure 2. The hPRR is a gene target of miR-152/miR-148b. A: Schematic diagram showing miR-152/miR-148 putative binding sites in hPRR 3′-UTR. B: The sequence alignments of mature miR-152 and miR-148b with the human PRR 3′-UTR are shown. C: Conserved miR-152/miR-148 binding sites (8 bp seed sequence) in PRR 3′-UTRs are underlined.
