Figure 4 of Khorram, Mol Vis 2015; 21:1017-1023.

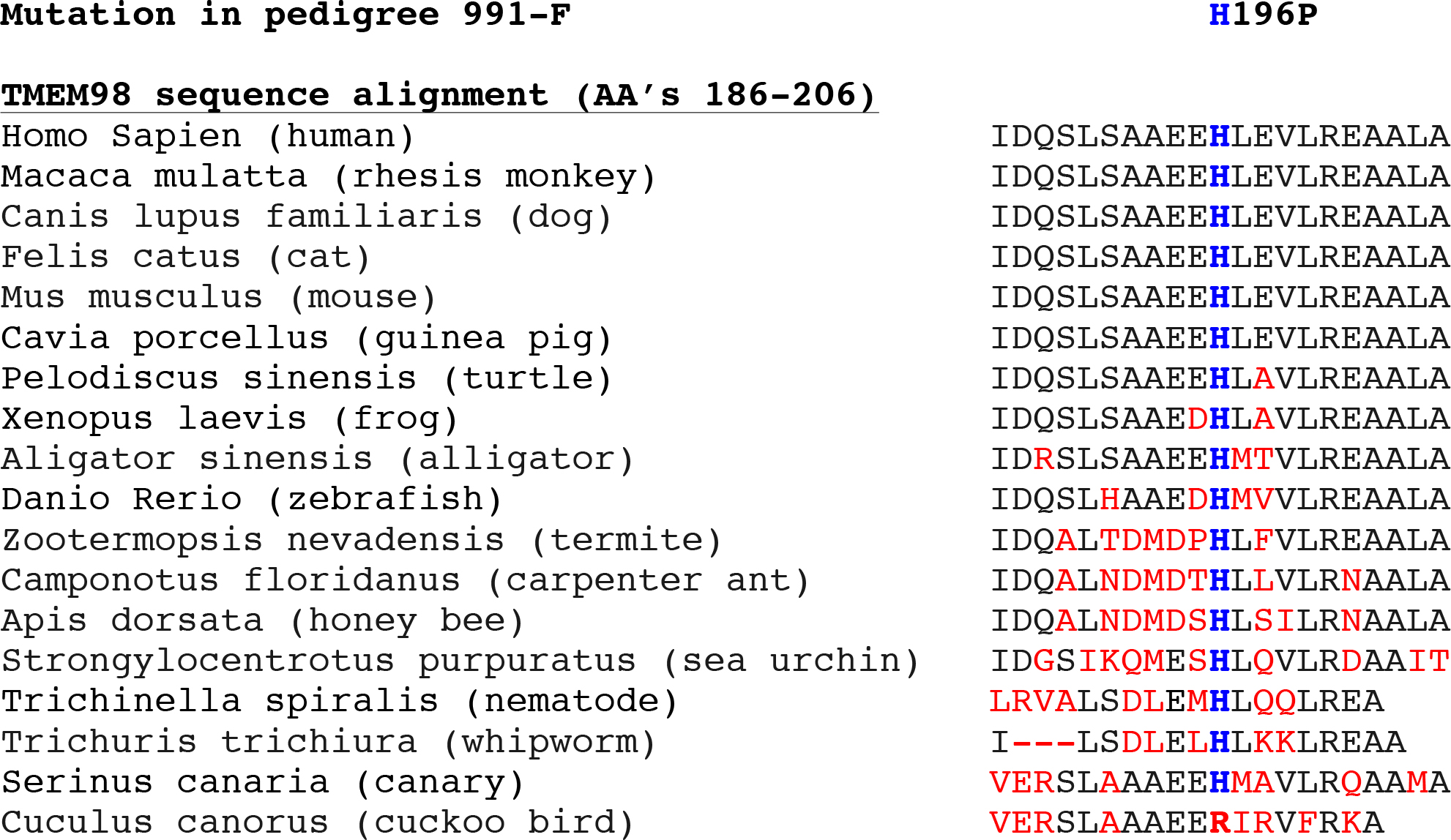

Figure 4. TMEM98 sequence analysis. Alignment of protein sequences encoded by human TMEM98 with orthologous genes spanning the His196Pro mutation detected in pedigree 991-F. The histidine amino acid at codon 196 indicated in blue letters is conserved across many species; the flanking amino acids that are not conserved are indicated in red.
