Figure 3 of Thichanpiang, Mol Vis 2014; 20:781-789.

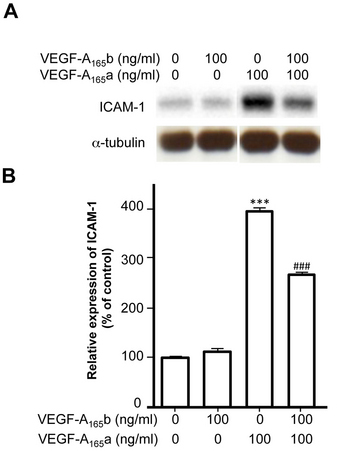

Figure 3. VEGF-A165b inhibited VEGF-A165a-ICAM-1 expression. A: Immunoblot for ICAM 1 expression in primary RPE cells. B: Relative expression of the intercellular adhesion molecule-1 (ICAM-1) protein. ICAM-1 was normalized with α-tubulin (as the internal control) and expressed as a percentage of the control group. Data are expressed as the mean ± standard error of the mean (SEM) of three independent experiments; ***p<0.001 compared with the control, ###p<0.001 compared with VEGF-A165a treated alone.
