Figure 9 of Querques, Mol Vis 2014; 20:575-592.

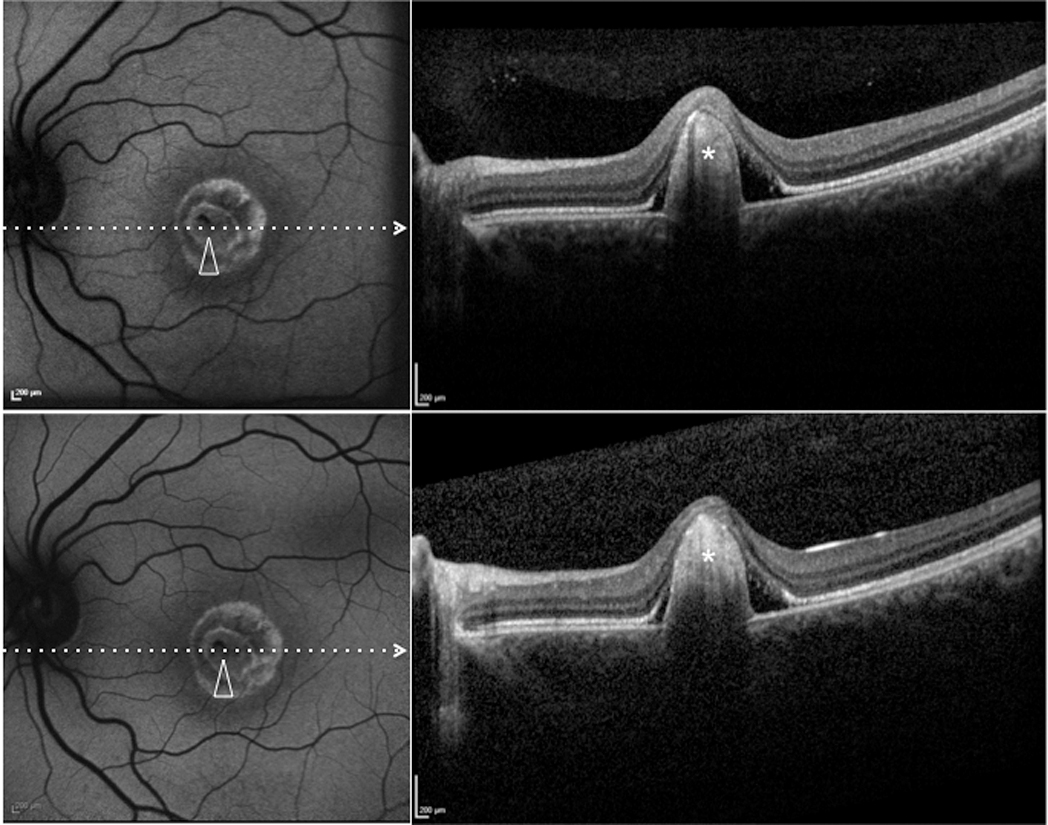

Figure 9. Patient #6. Blue fundus autofluorescence (FAF) and spectral-domain optical coherence tomography (SD-OCT) reveal the right eye affected with fibrotic lesion at both study entry and last follow-up visit (24 months later). At study entry (top left and top right panels), blue FAF frames show central (arrowhead) reduced autofluorescence (with some residual dispersed autofluorescent material), and SD-OCT shows a prominent highly hyperreflective thickening at retinal pigment epithelium level, inducing marked anterior bulging, accompanied by diffuse loss and thinning of the sensory retina (asterisk). Blue FAF and SD-OCT findings appear unchanged at the last follow-up visit (bottom left and bottom right panels). Note the presence of a hyperautofluorescent ring.
