Figure 4 of Querques, Mol Vis 2014; 20:575-592.

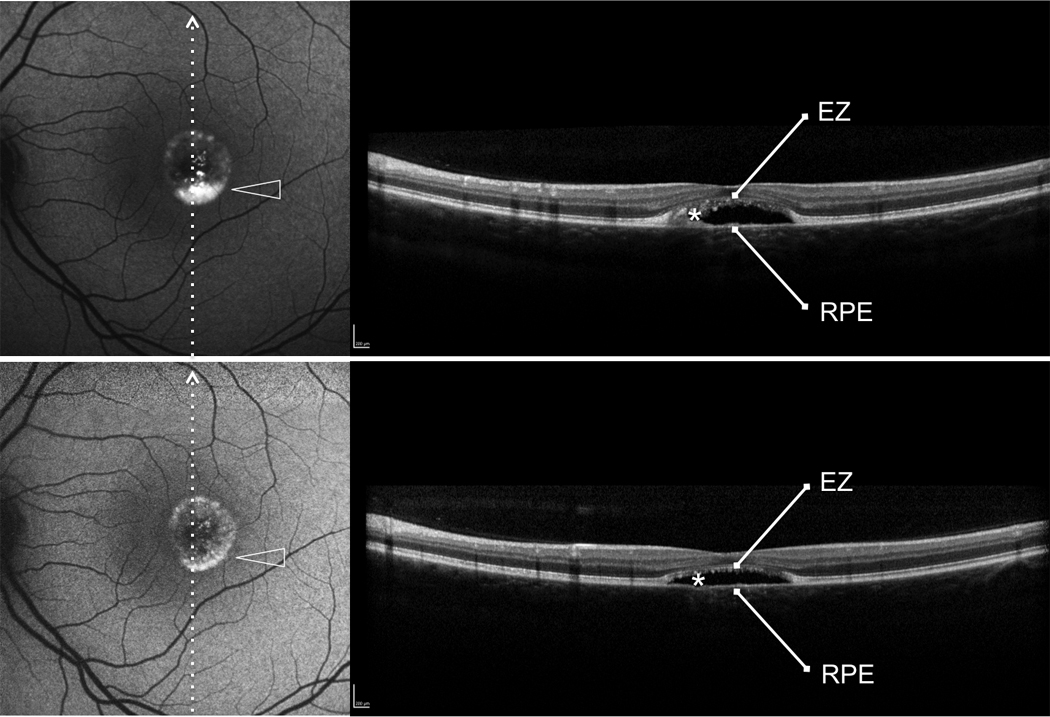

Figure 4. Patient #16.Blue fundus autofluorescence (FAF) and spectral-domain optical coherence tomography (SD-OCT) reveal the left eye affected with pseudohypopyon lesion at study entry and vitelliruptive lesion last follow-up visit (12 months later). Blue FAF frames and SD-OCT scans at study entry (top left and top right panels) show a partial reabsorption of the hyperautofluorescent (arrowhead)/hyperreflective material (asterisk) located between the hyperreflective photoreceptor inner segment (IS) ellipsoid portion (ellipsoid zone, EZ) and the hyperreflective retinal pigment epithelium (RPE)/Bruch’s membrane complex, and replacement by a fluid component. At the last follow-up visit, blue FAF frames and SD-OCT scans (bottom left and bottom right panels) show further reabsorption of the hyperautofluorescent (arrowhead)/hyperreflective material (asterisk).
