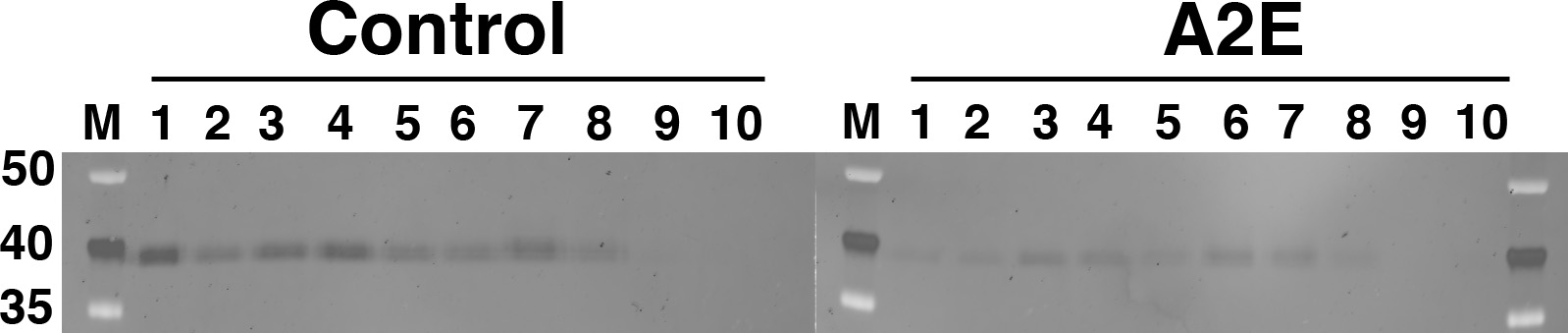

Figure 9. Degradation of rod outer segments is not impaired in melanized 1 µM A2E-treated ARPE-19 cells. Immunoblots of lysosomal fractions
of melanized multiple 1 µM A2E-treated ARPE-19 cells challenged with rod outer segments (ROSs) were probed with anti-rhodopsin
D4 monoclonal antibody and Cy3-conjugated goat anti-mouse ECplex fluorescent antibody (1:2,500, Amersham Biosciences, Piscataway,
NJ). Processed blots were scanned in a Typhoon 9410 scanner (Amersham Biosciences). Results shown are representative of three
separate experiments.
