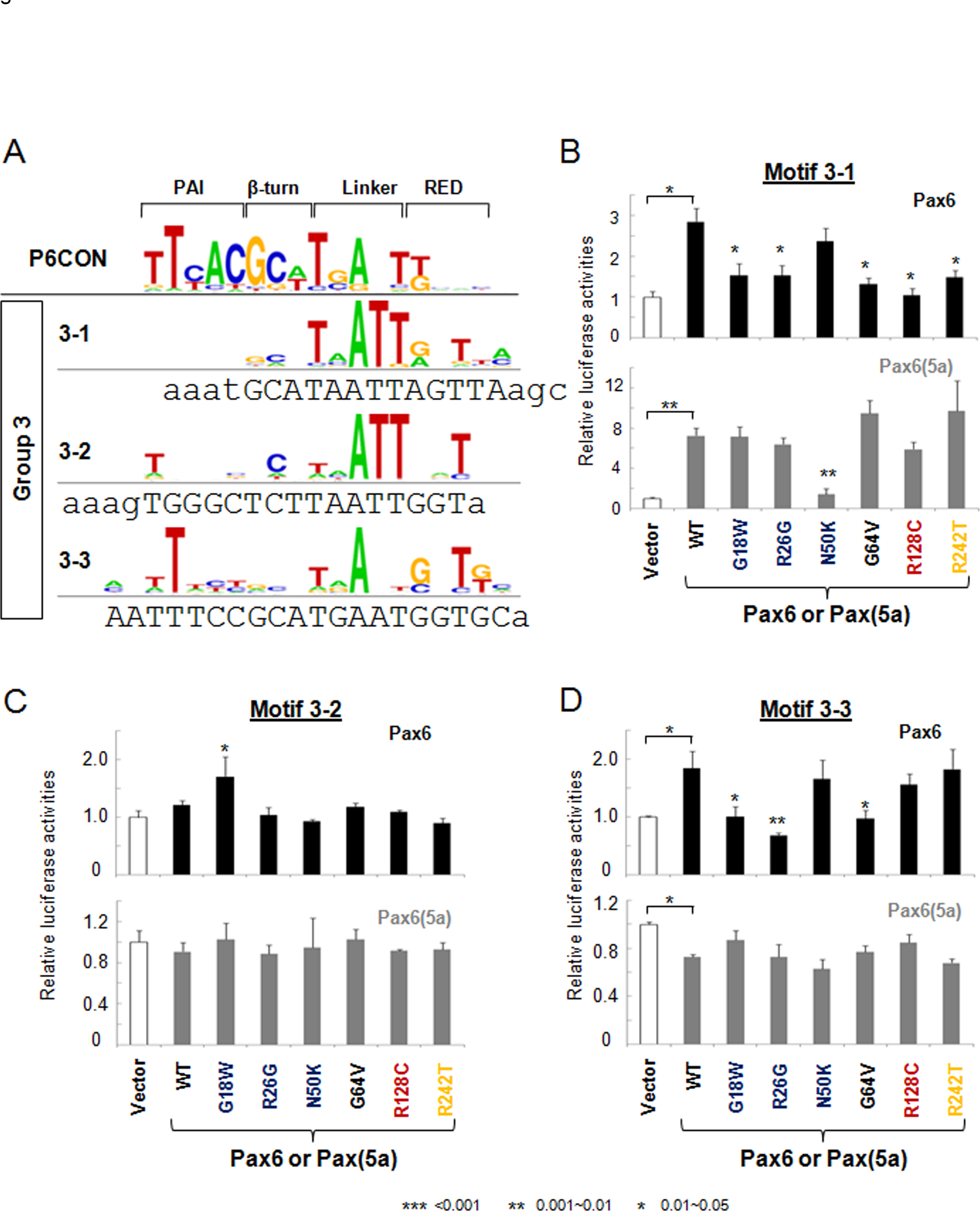

Figure 4. Transcriptional regulation by PAX6 and PAX6(5a) on motif 3–1, 3–2, and 3–3 luciferase reporters. A: Distribution of the nucleotides in Pax6-binding motifs 3–1, 3–2, and 3–3. The DNA sequences for gene synthesis are aligned
with the corresponding motifs. The binding sites and flanking sequences are in upper and lower case, respectively. Evaluation
of PAX6 (black bars) and PAX6(5a; gray bars) series with 3–1 (B), 3–2 (C), and 3–3 (D) luciferase reporters in cotransfected P19 cells. The sample size n=6 from two independent triplicates. The error bars represent
the standard deviation. The significant fold-changes are indicated by the asterisks. The range of the p values are: *** <0.001,
** 0.001~0.01, * 0.01~0.05.
