Figure 4 of Chen, Mol Vis 2014; 20:242-258.

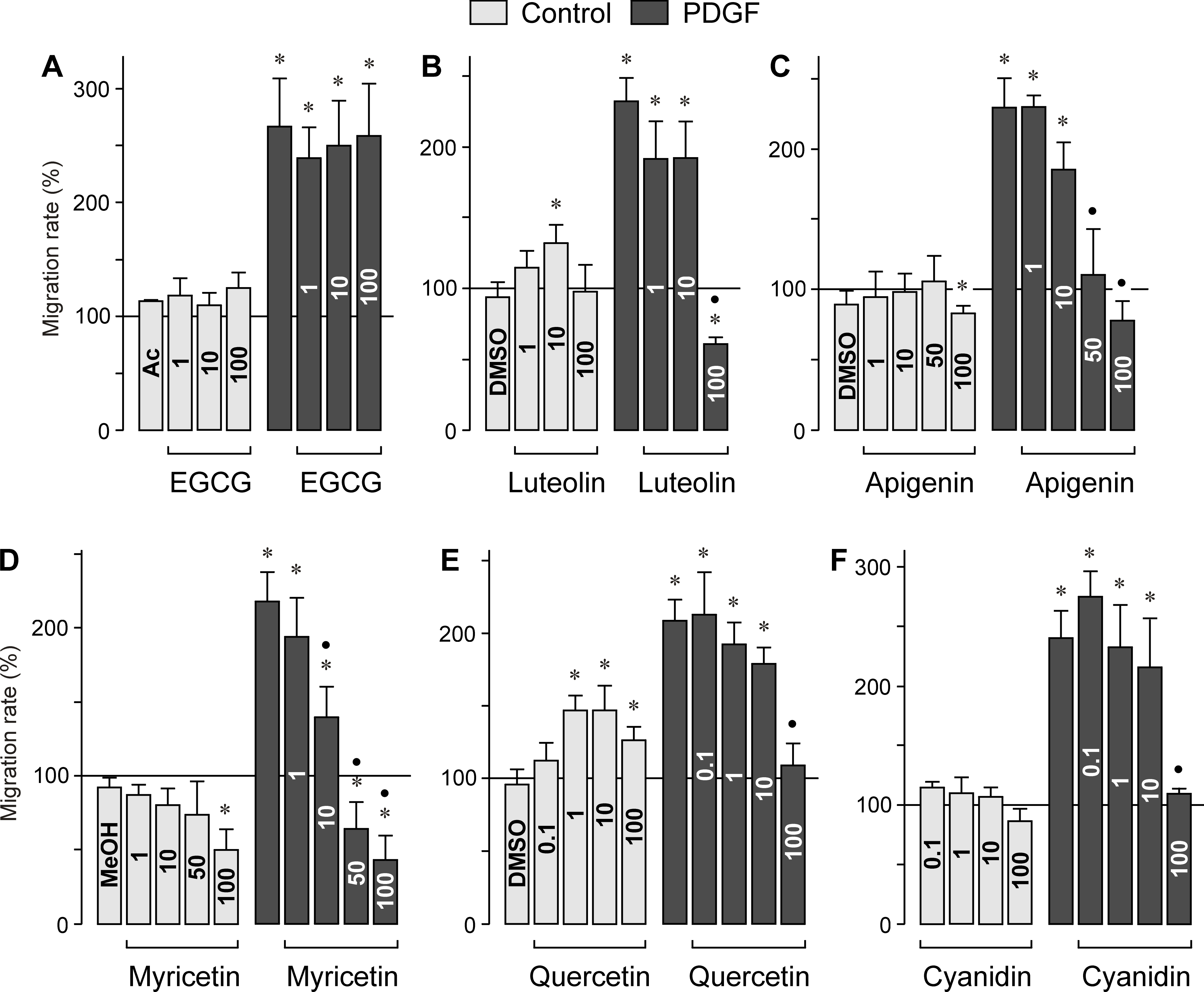

Figure 4. Dose-dependent effects of several vegetable polyphenols on the chemotaxis of retinal pigment epithelial cells. (A) epigallocatechin-3-gallate, (B) luteolin, (C) apigenin, (D) myricetin, (E) quercetin, and (F) cyanidin. The effects were determined in the absence (control) and presence of platelet-derived growth factor (PDGF) (10 ng/ml). The concentrations of the test substances (in µM) are given in the bars. The vehicle controls were made with acetone (Ac; 0.2%), dimethyl sulfoxide (DMSO; 0.1%), and methanol (MeOH; 0.2%), respectively. Data are means±standard error of the mean (SEM) of three to five independent experiments using cells from different donors, and are expressed in percent of untreated control (100%). Significant difference vs. untreated control: *p<0.05. Significant difference vs. PDGF control: ●p<0.05.
