Figure 2 of Sodi, Mol Vis 2014; 20:1717-1731.

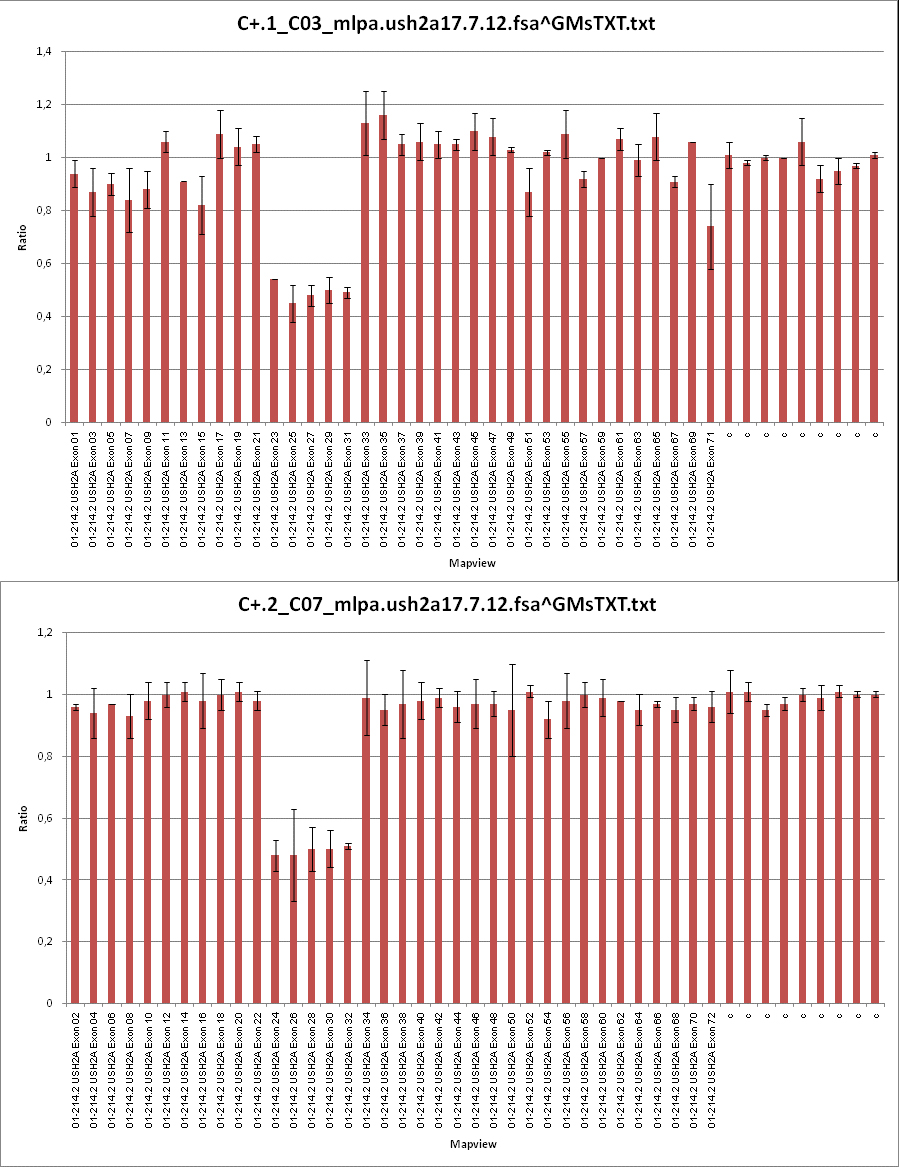

Figure 2. MLPA probe signals and results of the analysis. The Coffalyser Sample Plate Generator was used to automatically create sample plate files for the MLPA analysis. Results showed that probe signals from exons 23 to 32 of the USH2A gene (see the x-axis) were significantly decreased (ratio on the y-axis is about 0.5) indicating the presence of a deletion across those exons in patient CF.
