Figure 1 of Stempel, Mol Vis 2014; 20:1366-1373.

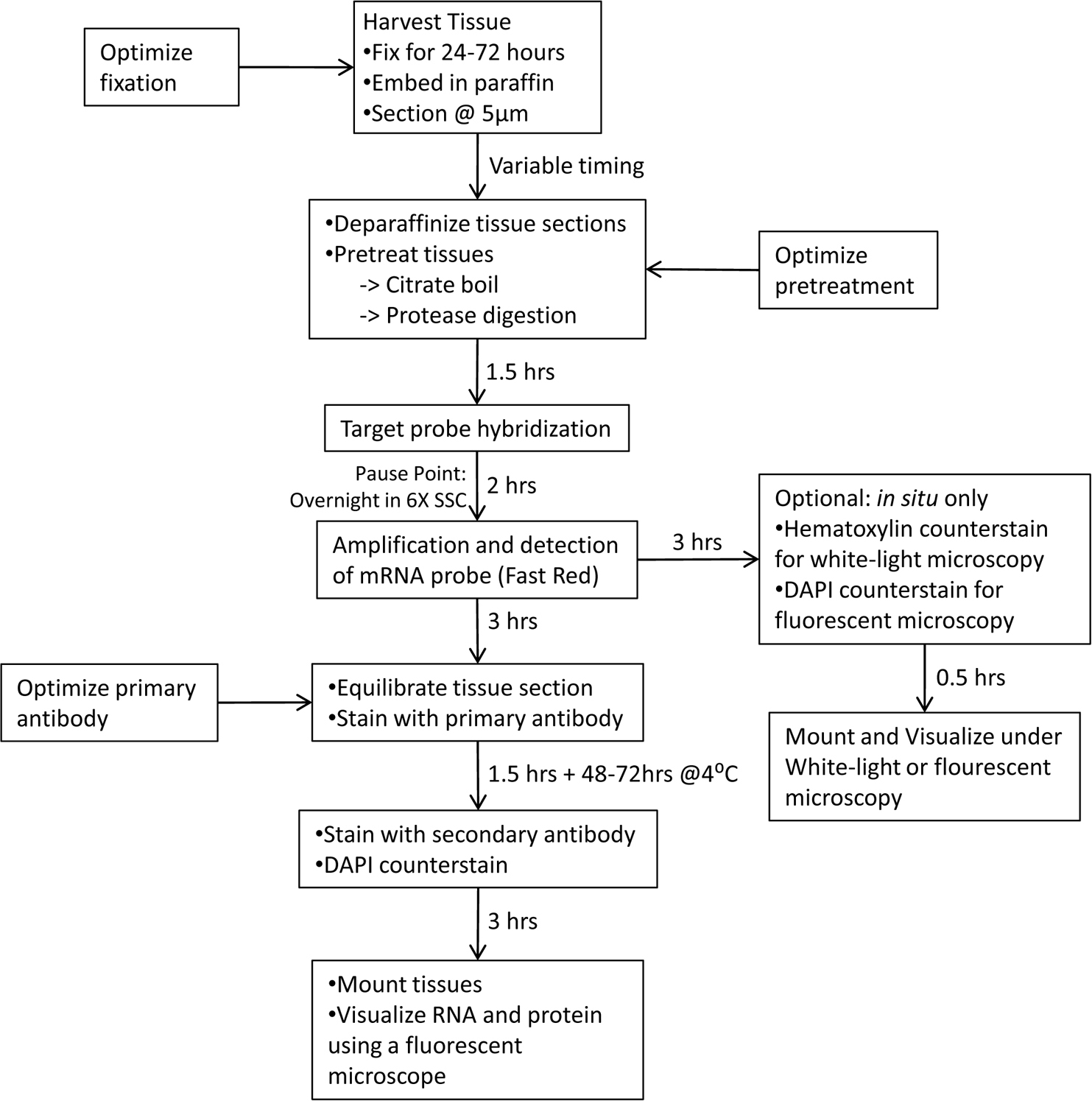

Figure 1. Overview of the protocol for combined in situ hybridization and immunohistochemistry in formalin-fixed paraffin embedded ocular tissue. The flowchart demonstrates the various stages of the protocol, including estimations of the time needed for each step.
