Figure 4 of Thao, Mol Vis 2014; 20:125-131.

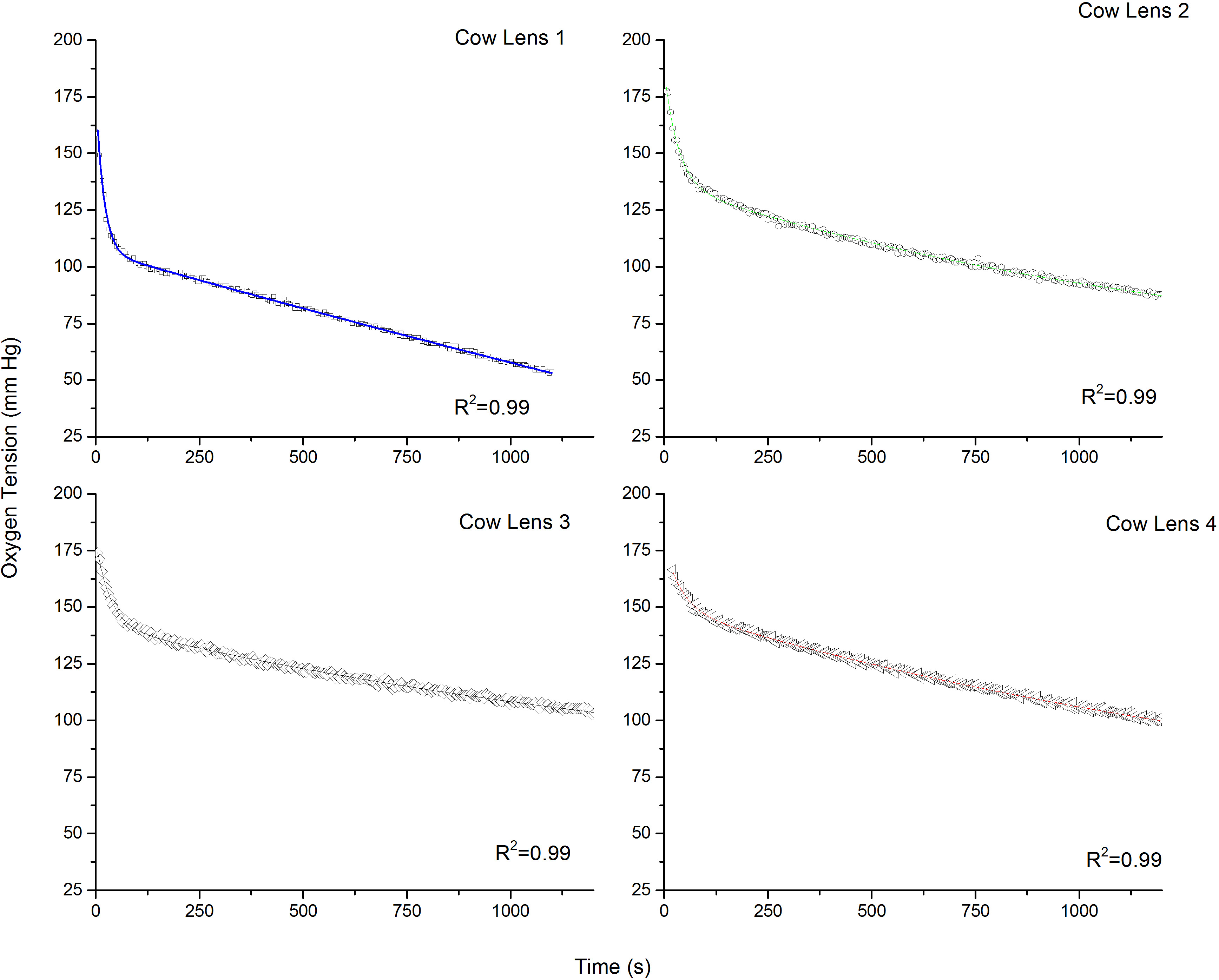

Figure 4. Typical oxygen decay signals from the bovine lenses as represented by four different lenses. All samples exhibited a two-phase decay pattern similar to the high viscosity samples.
