Figure 5 of Giovingo, Mol Vis 2013; 19:2151-2164.

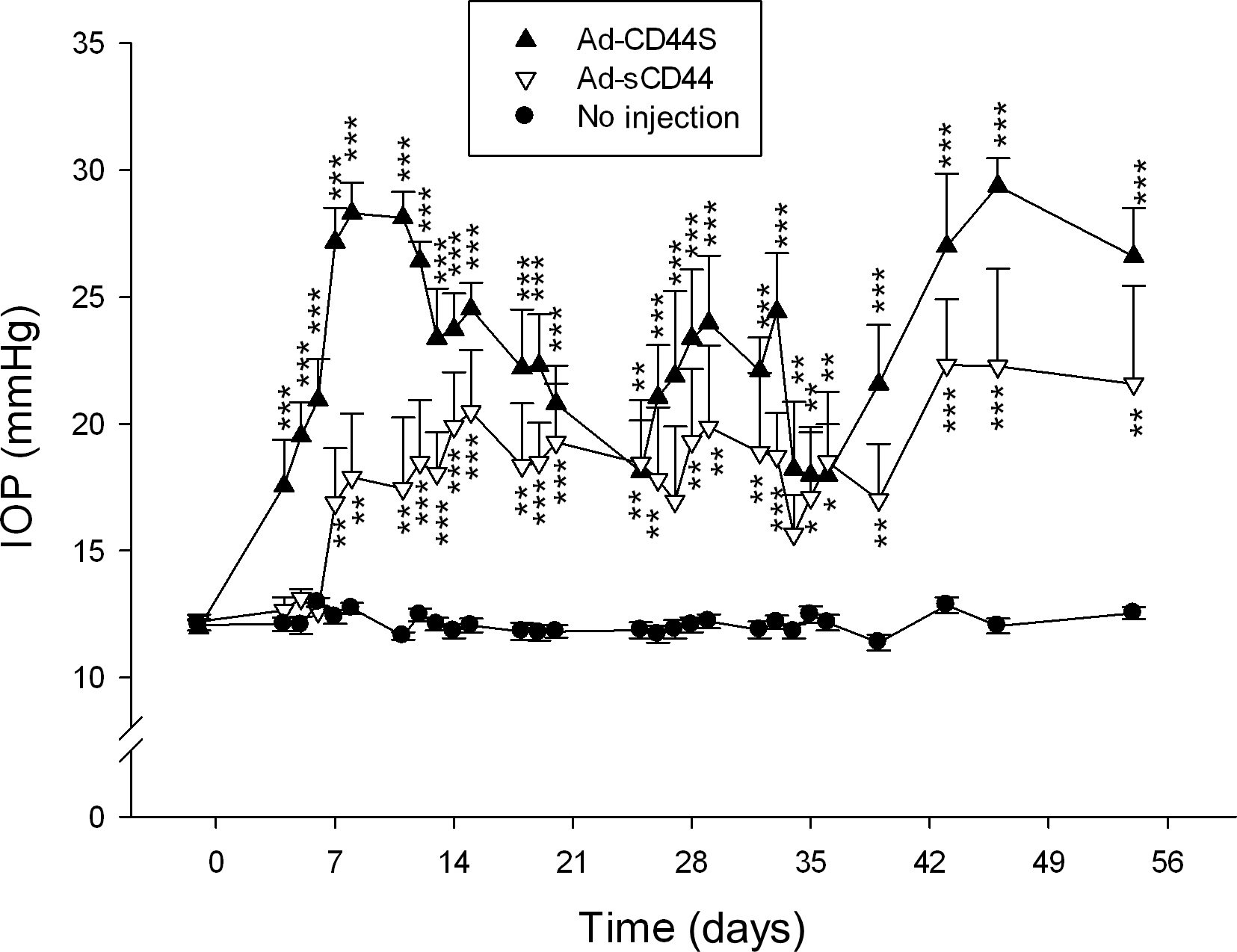

Figure 5. Effects of Ad-CD44S and Ad-sCD44 transduction on mouse intraocular pressure. One eye of BALB/cJ mice was injected intravitreally with 6×107 pfu with Ad-CD44S or Ad-sCD44 at day 0. The contralateral eye of mice was uninjected and served as a control. Results are expressed as mean ± SEM (n=8 for the injected groups, n=16 for control). The statistical results are: *p<0.05, **p<0.01, *** p<0.001 compared with the no-injection group using one-way analysis of variance (ANOVA) followed by Dunnett’s test.
