Figure 1 of Bakhtiari, Mol Vis 2013; 19:575-580.

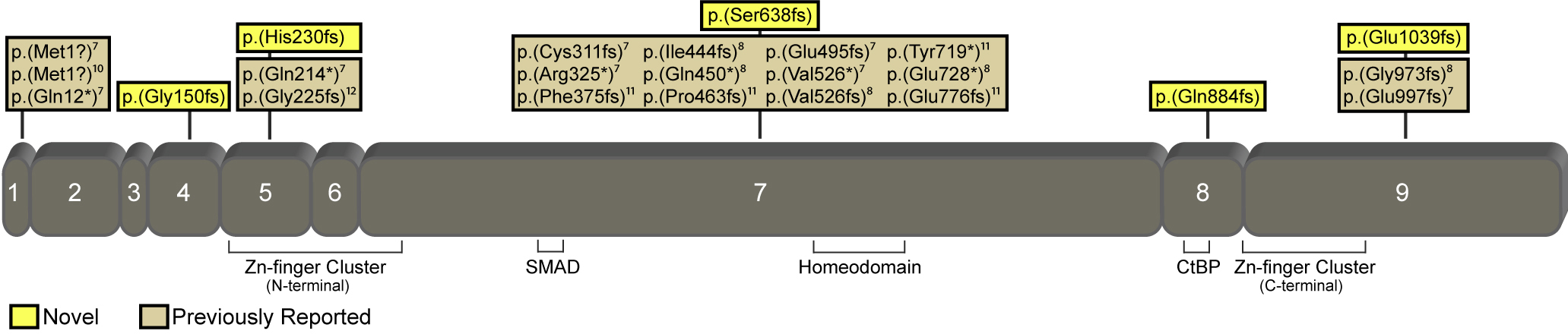

Figure 1. Depiction of the zinc finger E-box binding homeobox 1 (ZEB1) protein, demonstrating the location of the five novel mutations and 19 previously reported mutations. The mutation nomenclature is presented according the Human Genome Variation Society (HGSV) guidelines, and thus may be different from the nomenclature used in original publications. Important functional domains are also depicted.
