Figure 2 of Jelodari-Mamaghani, Mol Vis 2013; 19:333-347.

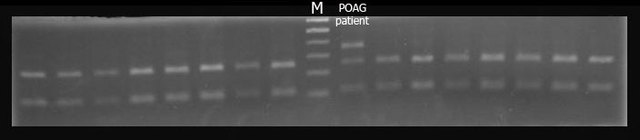

Figure 2. Screening of c.4912G>A mutation by restriction fragment length polymorphism. Polymerase chain reaction products of exon 34 were digested with HpyCH4IV. Three bands are evident in the electrophoretic pattern of mutation carrier (POAG patient), and only two bands in the electrophoretic pattern of the control individual. M, size markers.
