Figure 6 of Balmer, Mol Vis 2013; 19:2615-2625.

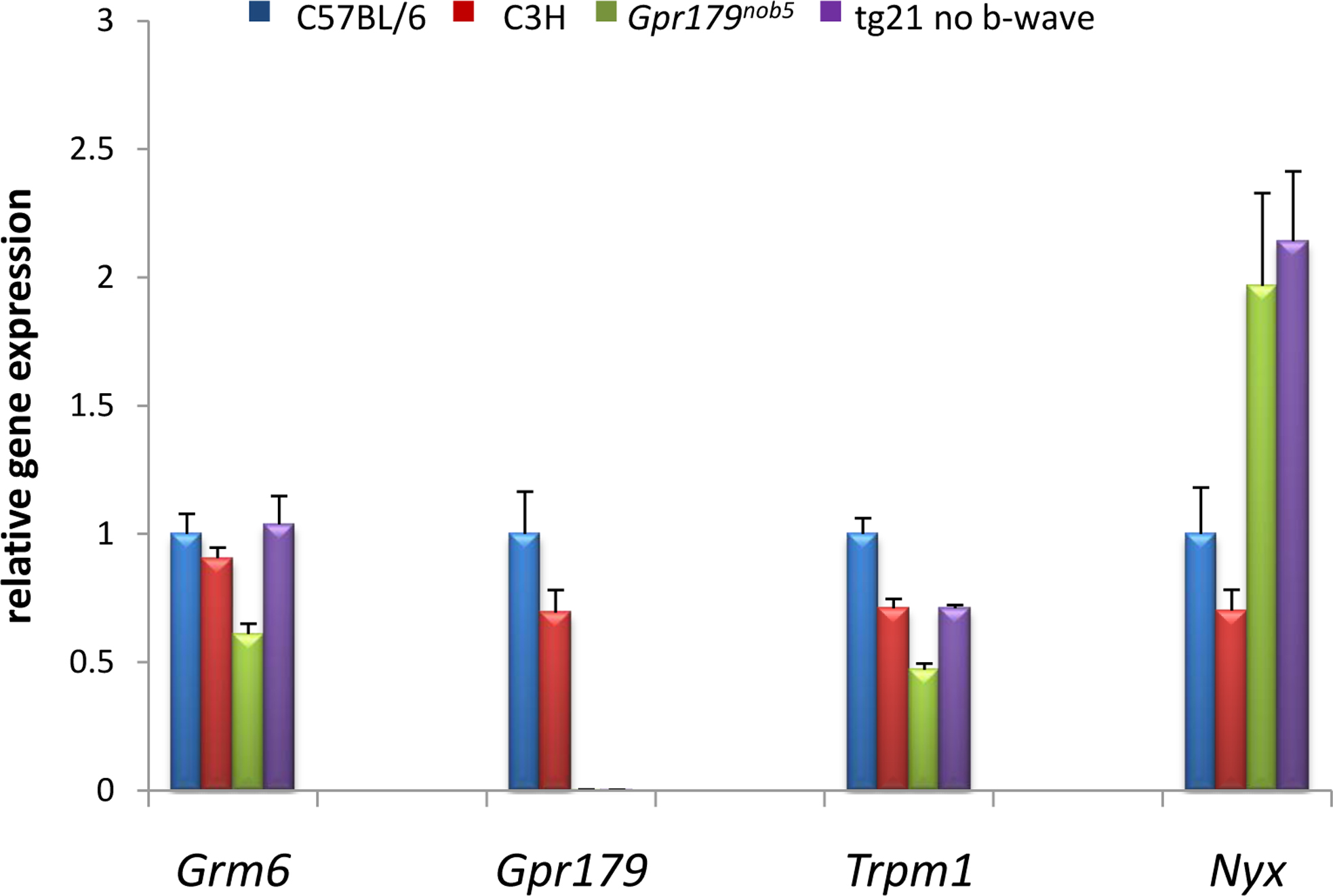

Figure 6. Expression levels of several genes required for normal depolarizing bipolar cell (DBC) function in several mouse lines. Note that expression of Gpr179 was decreased 370-fold in the tg21 no b-wave (nob) mice and in Gpr179nob5 mutant mice. Other depolarizing bipolar cell (DBC) genes were expressed at normal or slightly higher than normal levels in the tg21 nob and Gpr179nob5 mice. Values were normalized to control measures and actin served as the internal standard. Values are expressed as mean±SD (n=3).
