Figure 4 of Nishiguchi, Mol Vis 2013; 19:1125-1131.

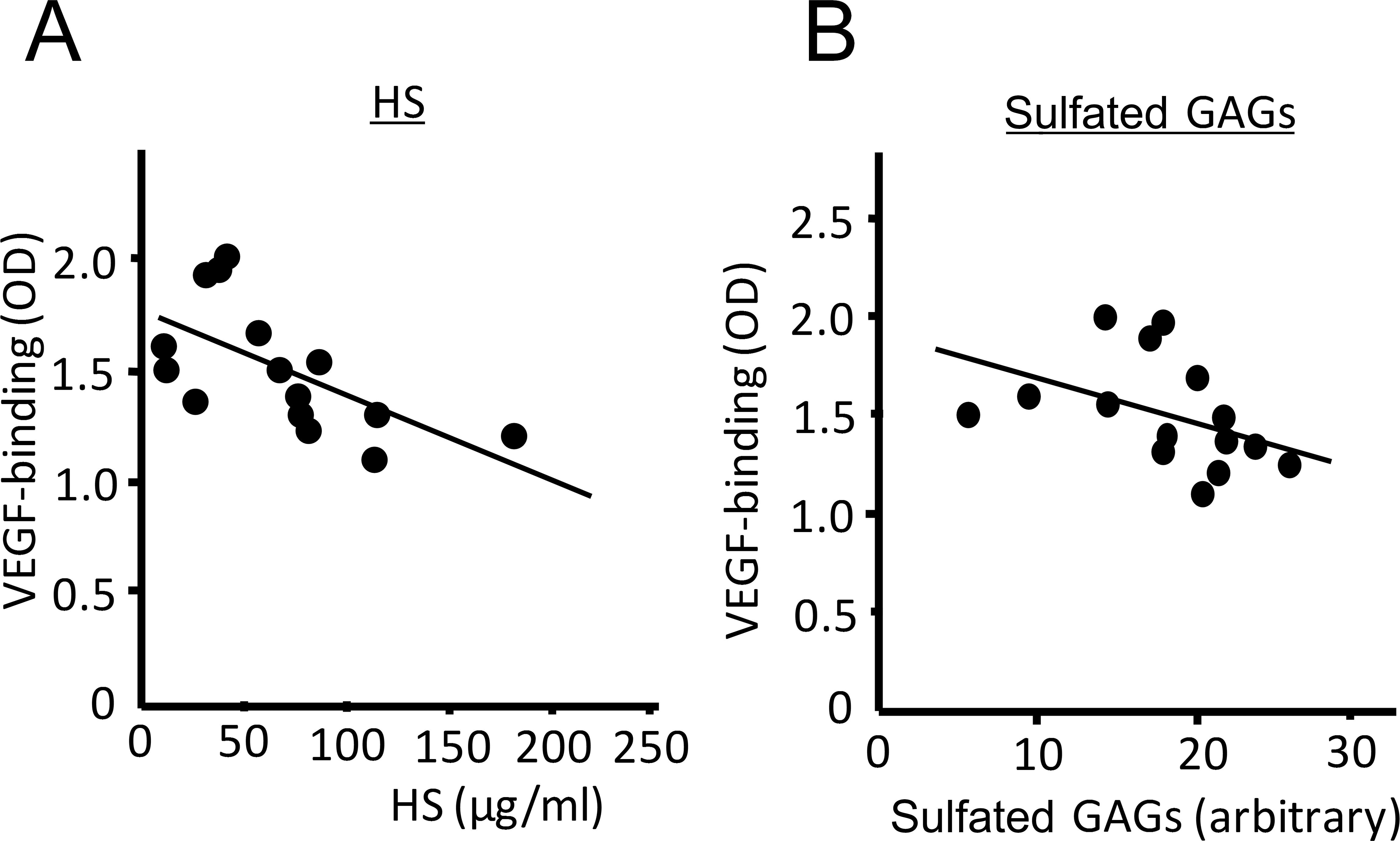

Figure 4. Negative correlation between vascular endothelial growth factor binding and levels of heparan sulfate or sulfated glycosaminoglycans in the vitreous in vitro. A, B: The degree of vascular endothelial growth factor (VEGF) binding to surface heparin was negatively correlated with heparan sulfate (HS; n=15; p=0.014; R2=0.377; A) and sulfated glycosaminoglycans (GAGs; n=15; p=0.039; R2=0.241; B).
