Figure 9 of Neelam, Mol Vis 2013; 19:1-15.

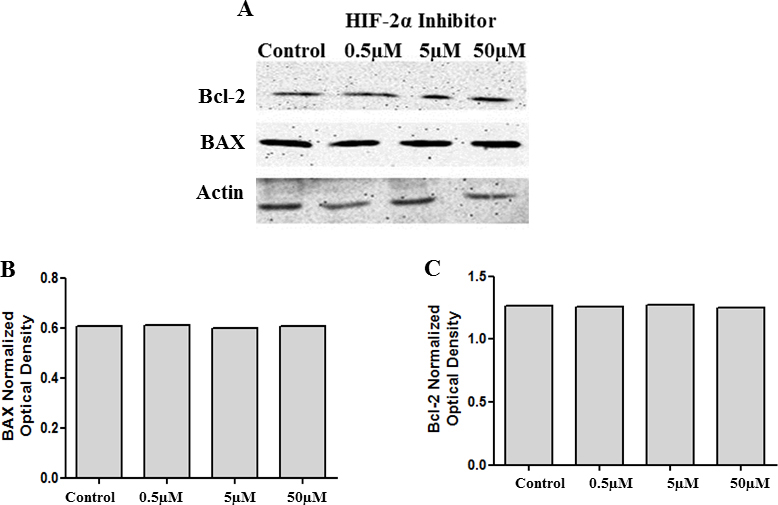

Figure 9. Inhibition of HIF-2α does not influence BAX or Bcl-2 levels. Cell lysates collected from cells treated with 0.5 µM, 5 µM, and 50 µM of HIF-2α translation inhibitor were analyzed with western blot analysis for BAX and Bcl-2 levels. There was no change in the protein levels of BAX and Bcl-2 (A). B and C represent the corresponding densitometry analysis.
