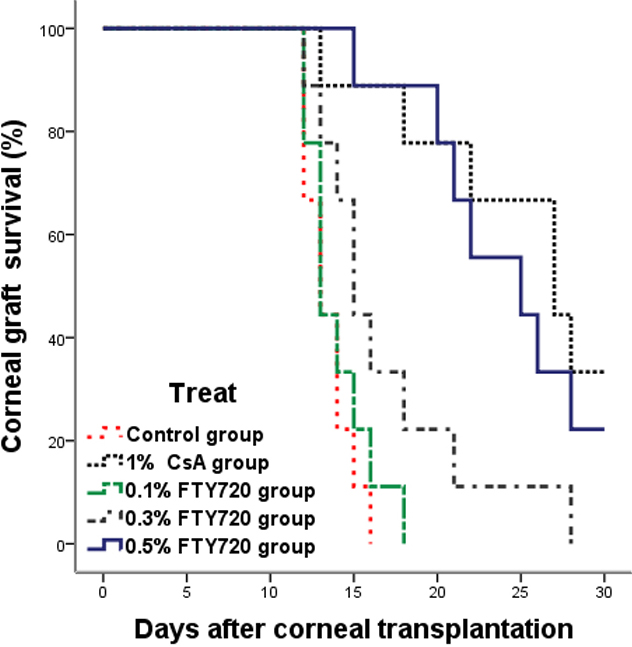

Figure 1 of Liu, Mol Vis 2012; 18:624-633.


Figure 1. Prolongation of corneal allograft survival by topical administration. Allograft survival of the control versus topical 0.1% FTY720 were not significantly different (p=0.47; n=9) but was compared with the topical 0.3% FTY720 treatment group (p=0.03; n=9). Treatment with 0.5% FTY720 or 1% CsA also resulted in significant graft survival compared to controls (both p<0.01; n=9) or 0.3% FTY720 treatment (p=0.02 and p=0.01, respectively). There was no significant difference between 0.5% FTY720 and 1% CsA (p=0.51).
