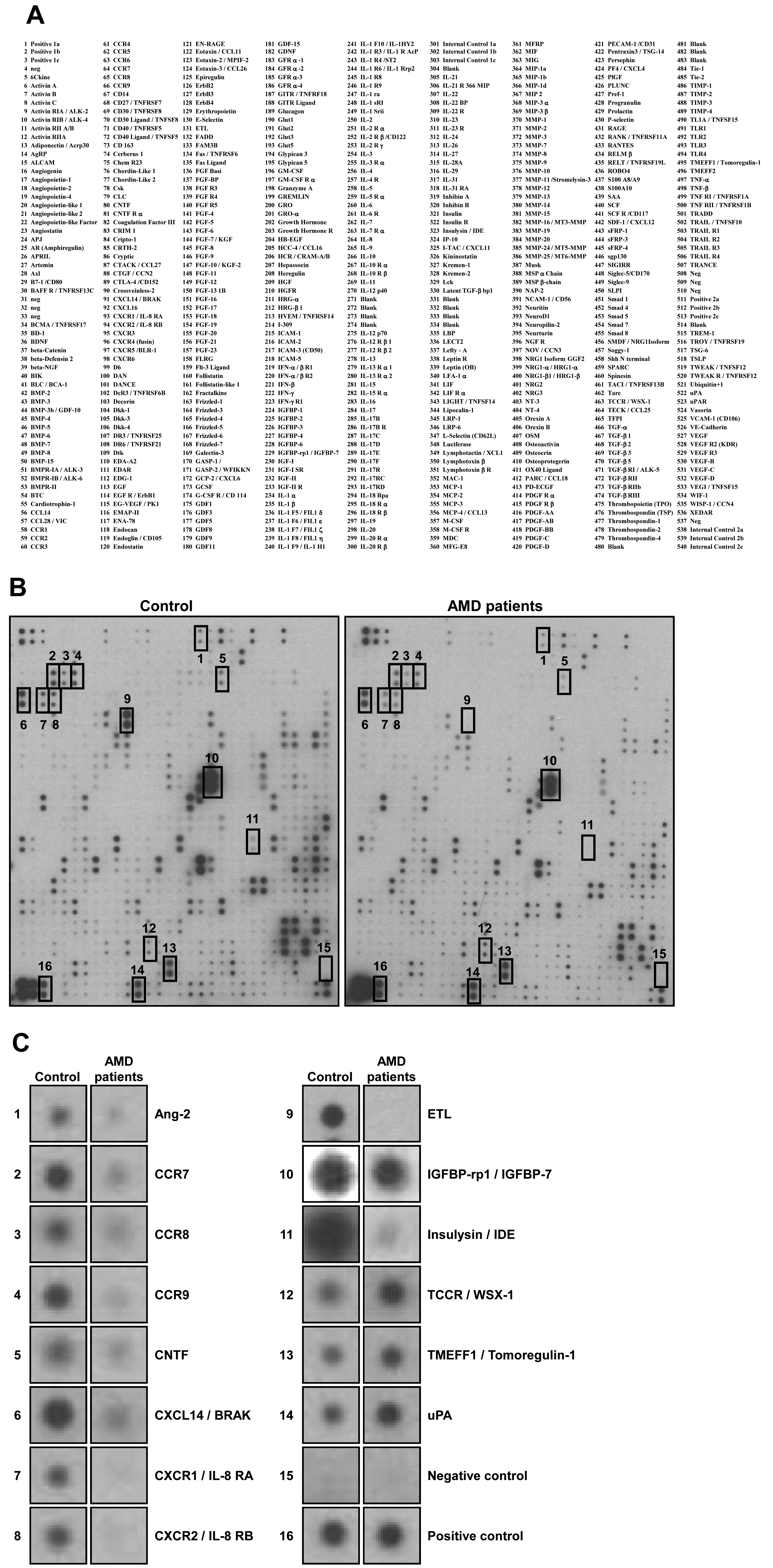

Figure 1. Expression levels of 507
proteins in aqueous humor of control or patients with
age-related macular degeneration (AMD). A: The list of
human antibodies. B: The mixed aqueous humor samples
were assayed directly with the RayBio® Biotin
Label-based Human Antibody Array kit. C: The following
proteins were changed in the aqueous humor of patients with AMD
compared to control: Ang-2, CCR7, CCR8, CCR9, CNTF, CXCL14,
CXCR1, CXCR2, ETL, IGFBP-7, and Insulysin (down-regulated);
TCCR, TMEFF1, and uPA (upregulated). Negative control (15) and
positive control (16) represent internal controls.
