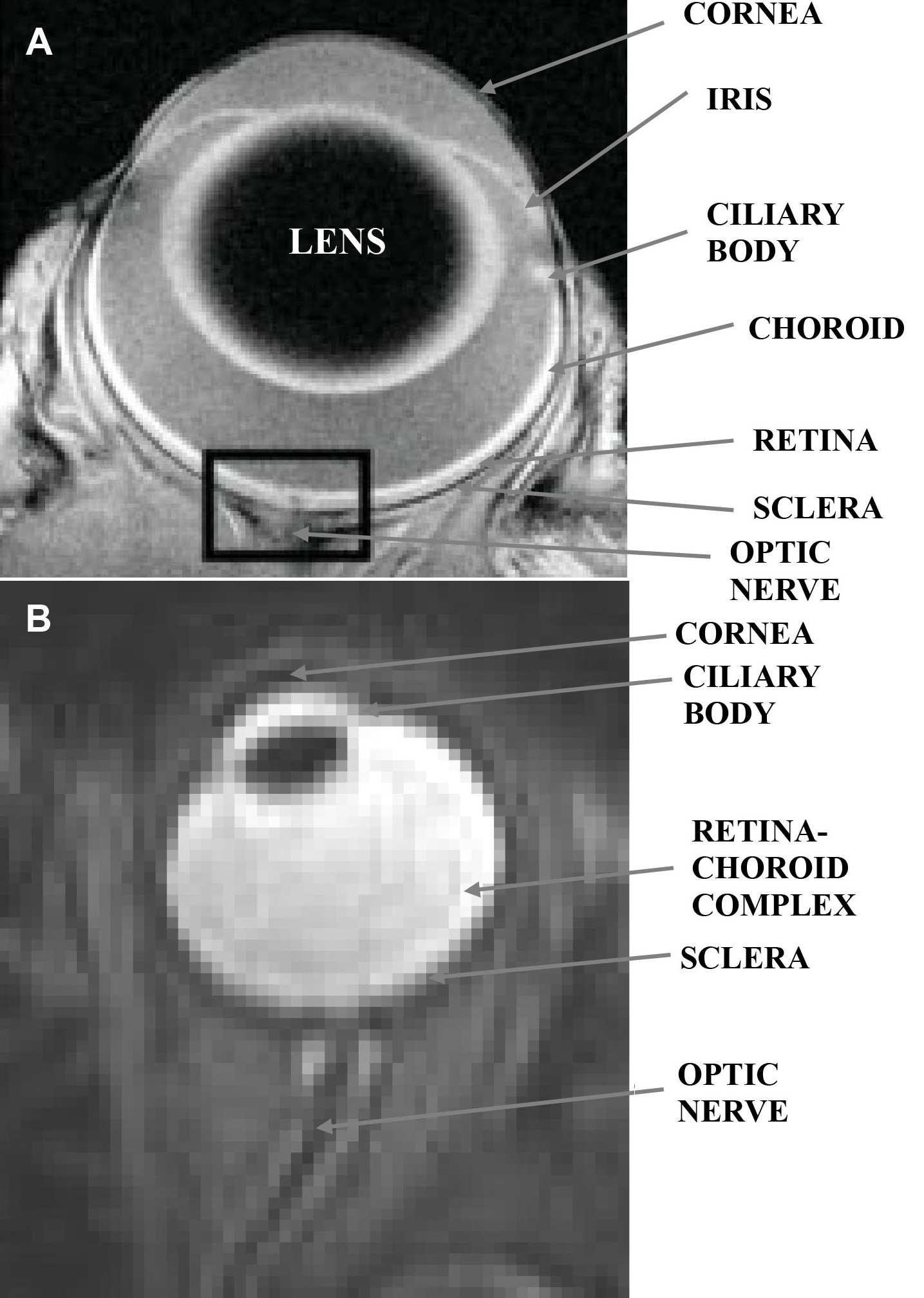

Figure 3. The highest spatial and
temporal resolution of in vivo rat:
A and human:
B:
ocular magnetic resonance imaging images. The spatial resolution
of the magnetic resonance imaging (MRI) image in
A is
23×23×620 μm
3, and its acquisition time was 50 min.
The spatial resolution of the MRI image in
B: is
780×1,560×2,000 μm
3, and its acquisition time was 5
s. The MRI image in
A is contrast agent enhanced, while
that in
B: is T
2-weighted and no contrast
agent was used during its acquisition. The image in
A
was reproduced from [
7]
with permission from John Wiley & Sons Ltd.
Figure 3
of Fanea, Mol Vis 2012; 18:2538-2560.
