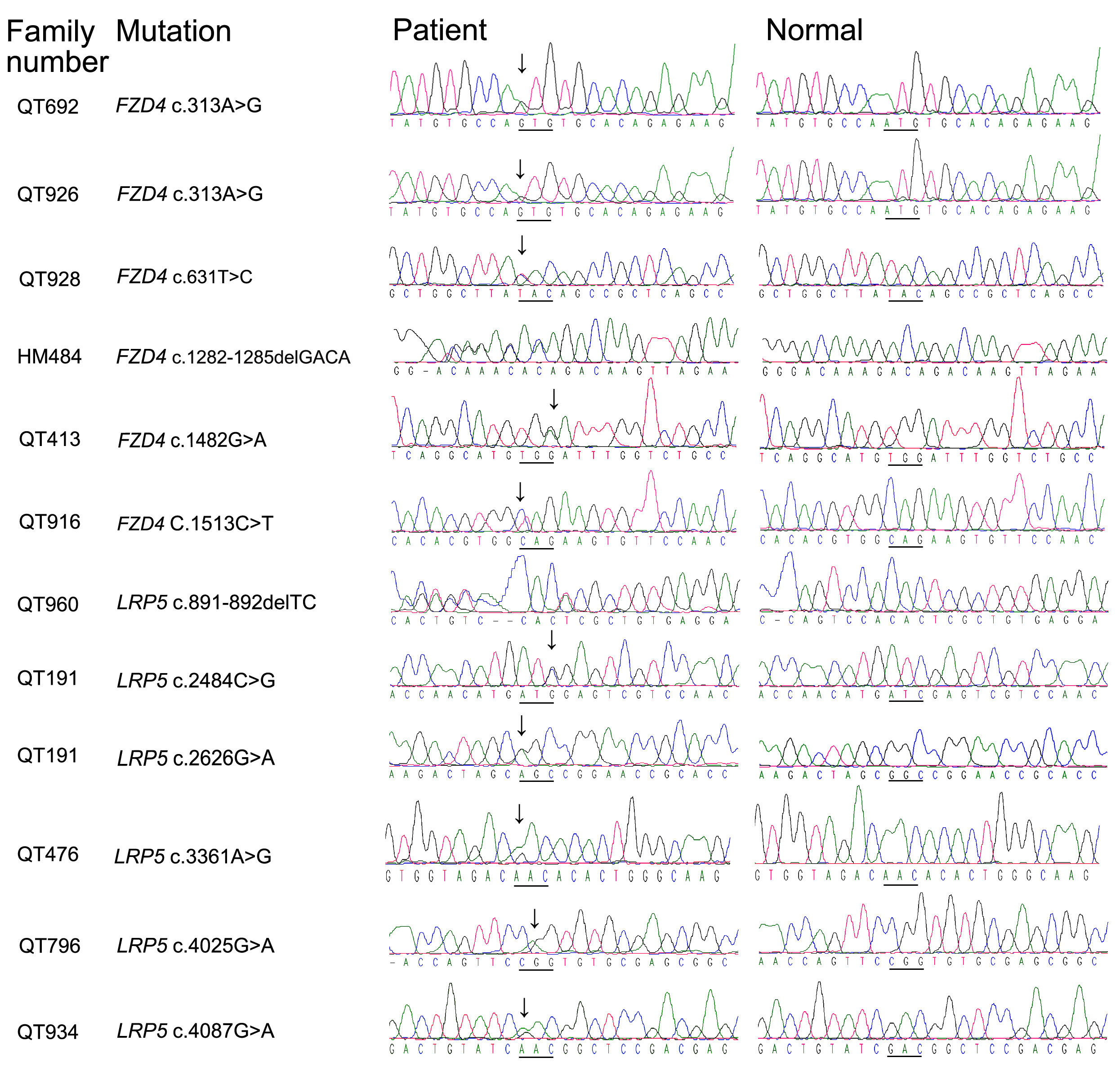

Figure 1 of Yang, Mol Vis 2012; 18:2438-2446.


Figure 1. Eleven mutations identified in FZD4 and LRP5 genes of 49 families with FEVR. The columns from left to right display the family number, the mutation designation, and sequence chromatography from patients and normal controls.
