Figure 1 of Weisschuh, Mol Vis 2012; 18:174-180.

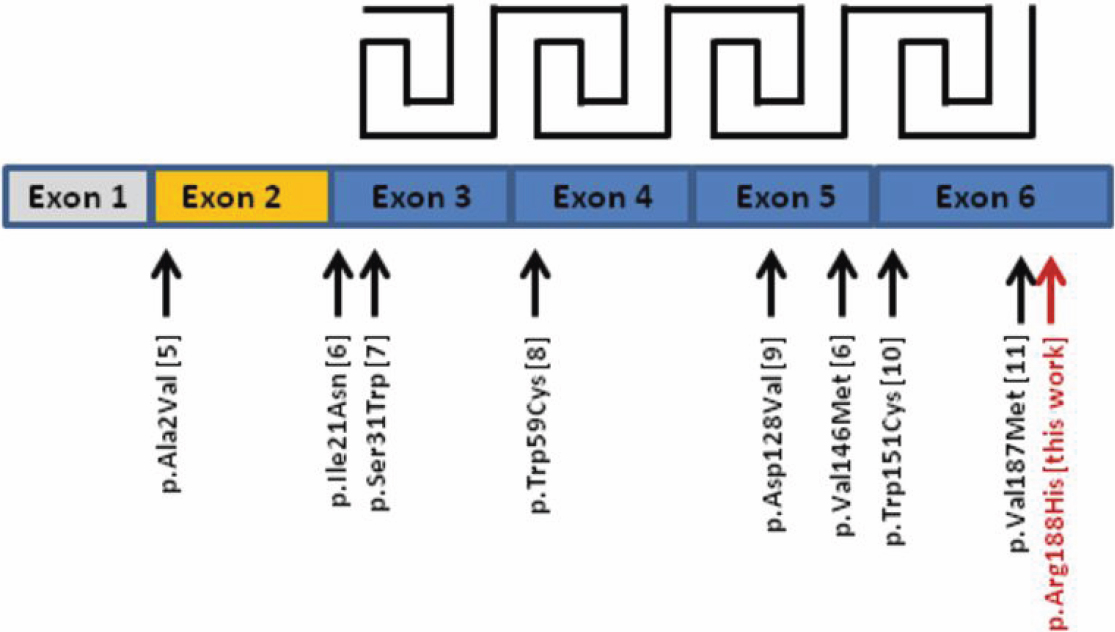

Figure 1. Schematic overview of gene structure and missense mutations found in CRYBB2. The CRYBB2 gene consists of six exons; each of the exons 3 to 6 encodes one Greek Key motif. The mutation identfied in this study is the most COOH-terminal identified so far and highlighted in red.
