Figure 6 of Imtiaz, Mol Vis 2012; 18:1885-1894.

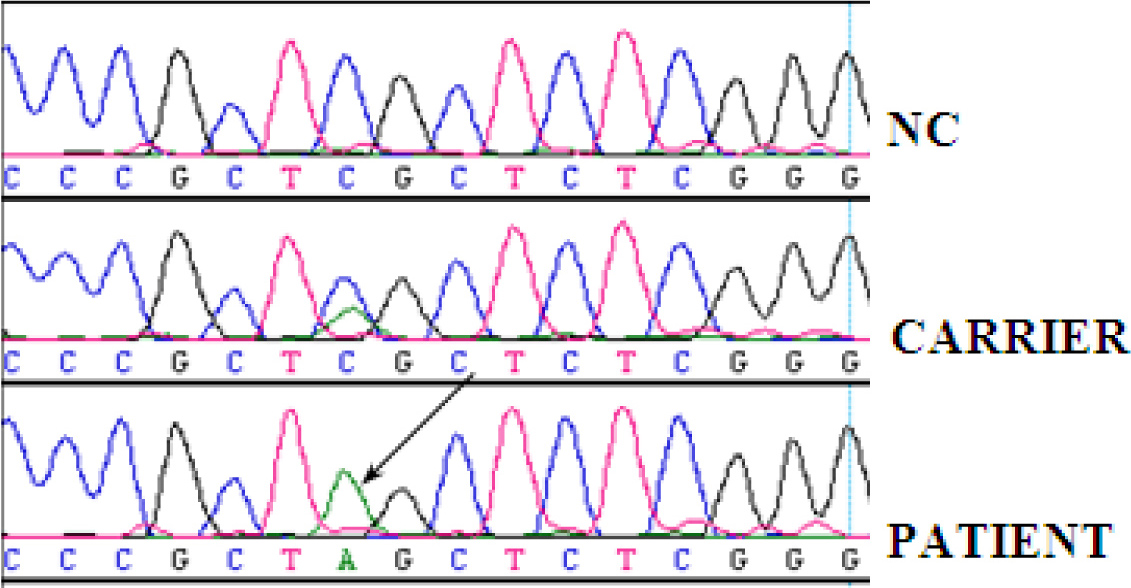

Figure 6. Mutation analysis-sequence data Sequence chromatogram of a normal control (NC), an individual heterozygous for the c.728C >A (p.S243X) mutation (CARRIER) and a homozygous p.S243X (indicated by an arrow) mutation in an affected patient (PATIENT).
