Figure 3 of Ecker, Mol Vis 2012; 18:1658-1667.

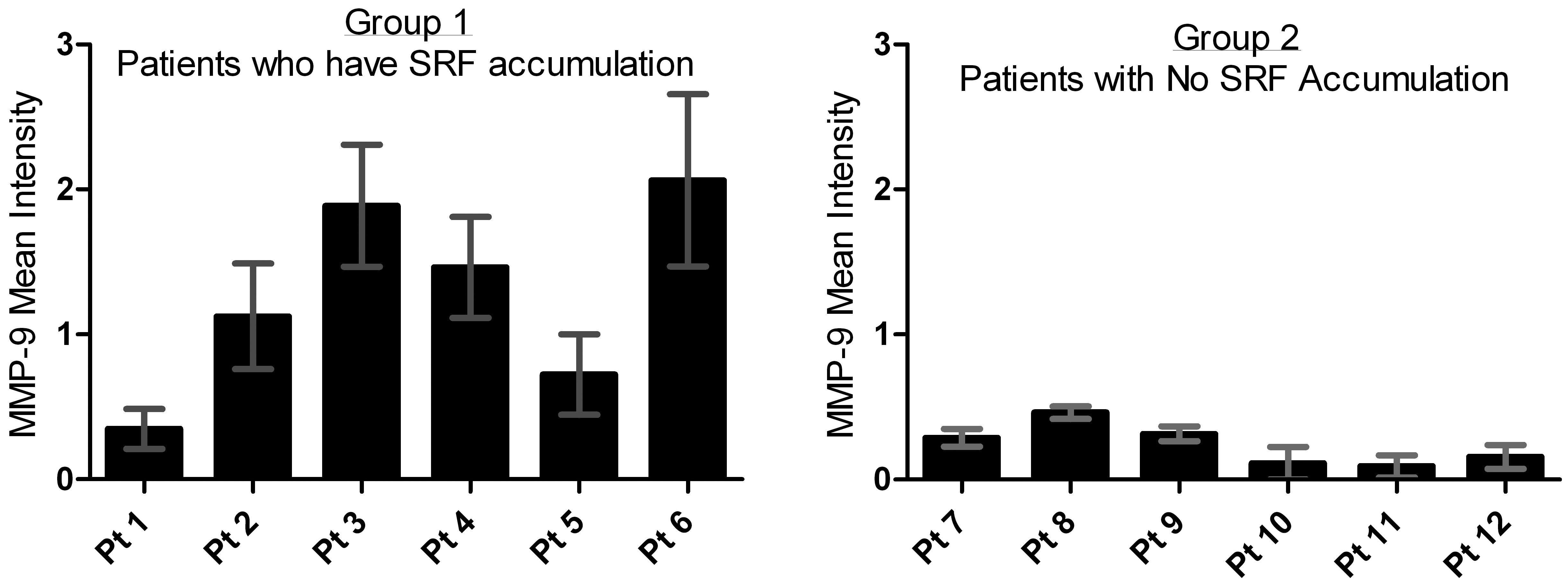

Figure 3. Matrix metalloproteinase 9 (MMP-9) expression differences between patients with SRF versus patients with no subretinal fluid (SRF). The MMP-9 mean expression level (±SD) is shown for each patient in this study. The Group 1 (Patients with SRF) graph shows that most patients have a mean MMP-9 expression level greater than 1.0. Whereas the Group 2 (Patients with NO SRF) graph shows that all patients have a mean MMP-9 expression level much lower than 1.0.
