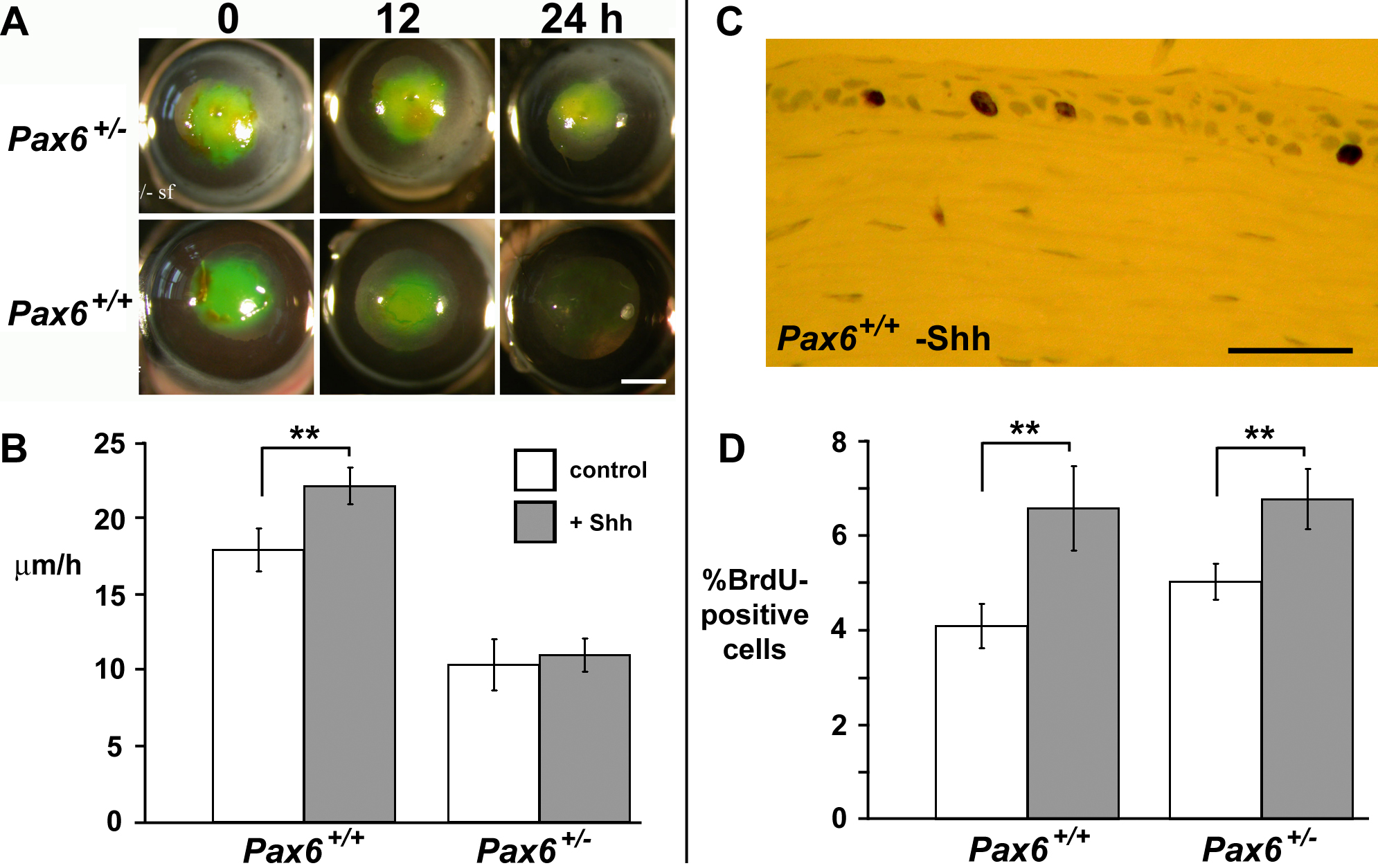

Figure 1. Exogenous Sonic hedgehog NH2-terminal
peptide (rmShh-N) improves healing of wounded Pax6+/+
but not Pax6+/− corneal epithelia. A:
Representative views of wounded Pax6+/+ and Pax6+/−
eyes, following roughly circular corneal epithelial debridement,
the wound visualized by topical application of sodium
fluorescein after 0, 12, and 24 h of healing ex vivo. B:
Mean±S.E.M. rate of epithelial wound closure for 8 wild-type and
5 Pax6+/− corneas with (gray bars) and
without (white bars) application of 5 μg/ml rmShh-N. C:
Representative image of a cluster of BrdU-positive nuclei
(brown) in the basal layer of a wild-type control corneal
epithelium. D: Mean±SEM percentage of BrdU-positive
cells in the basal layer of the cornea epithelium of 3 Pax6+/+
and Pax6+/− eyes, with (gray bars) or without
(white bars) topical application of rmShh-N. Pax6+/−
corneas increase their mitotic rate in response to Shh, but this
does not translate to increased wound healing rate. **
represents p<0.01. Scale bars: A, 1 mm; C, 50
μm.
