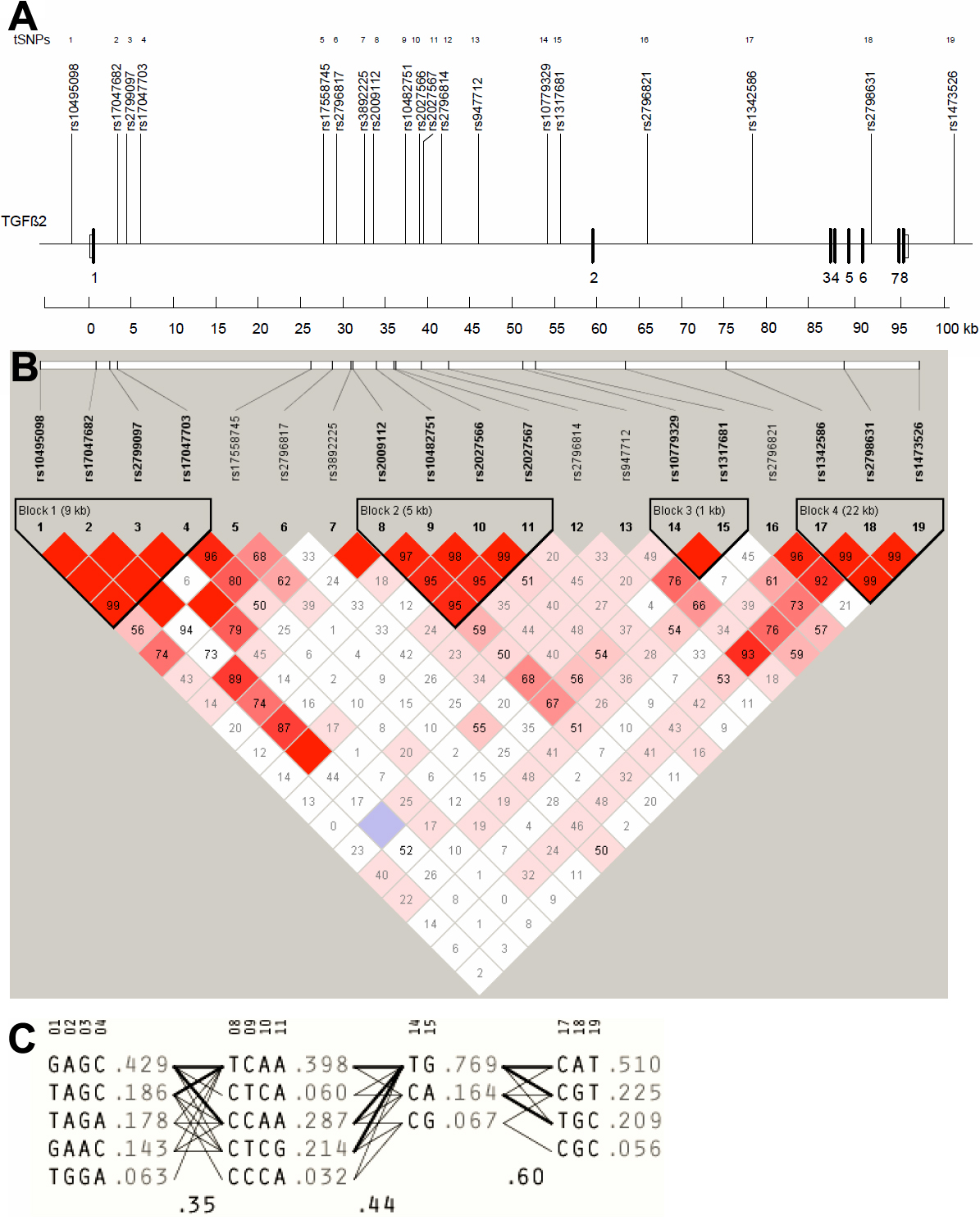

Figure 2. Linkage disequilibrium plot of
TGFβ2 region
HapMap SNPs.
A: The relative position of the remaining 19 tSNPs in
TGFβ2 (labeled above with the respective haplotype) spanning a region of 104,437 bp (Chr1: 216582933–216687370). Eight coding exons
are indicated as solid boxes and numbered accordingly. Untranslated exons are shown as open boxes.
B: Diagram of block structure of
TGFβ2 generated using
Haploview v.4.0.LD plots were identified by strong LD. Depth of red/pink color indicates the computed pairwise
D' value; deeper pink indicates a higher
D' value.
C: The selected tSNPs and estimated haplotype frequencies in the four major haplotype blocks (1–4) are shown. Marker numbers
above the haplotypes indicate tSNPs. The frequency of each haplotype within a block is given to the right of the haplotype.
The thickness of the lines connecting the haplotypes across blocks represents the relative frequency (i.e., high [
thick] versus low [
thin]) with which a given haplotype is associated with the haplotype in the neighboring block.
