Figure 1 of Zou, Mol Vis 2012; 18:1215-1225.

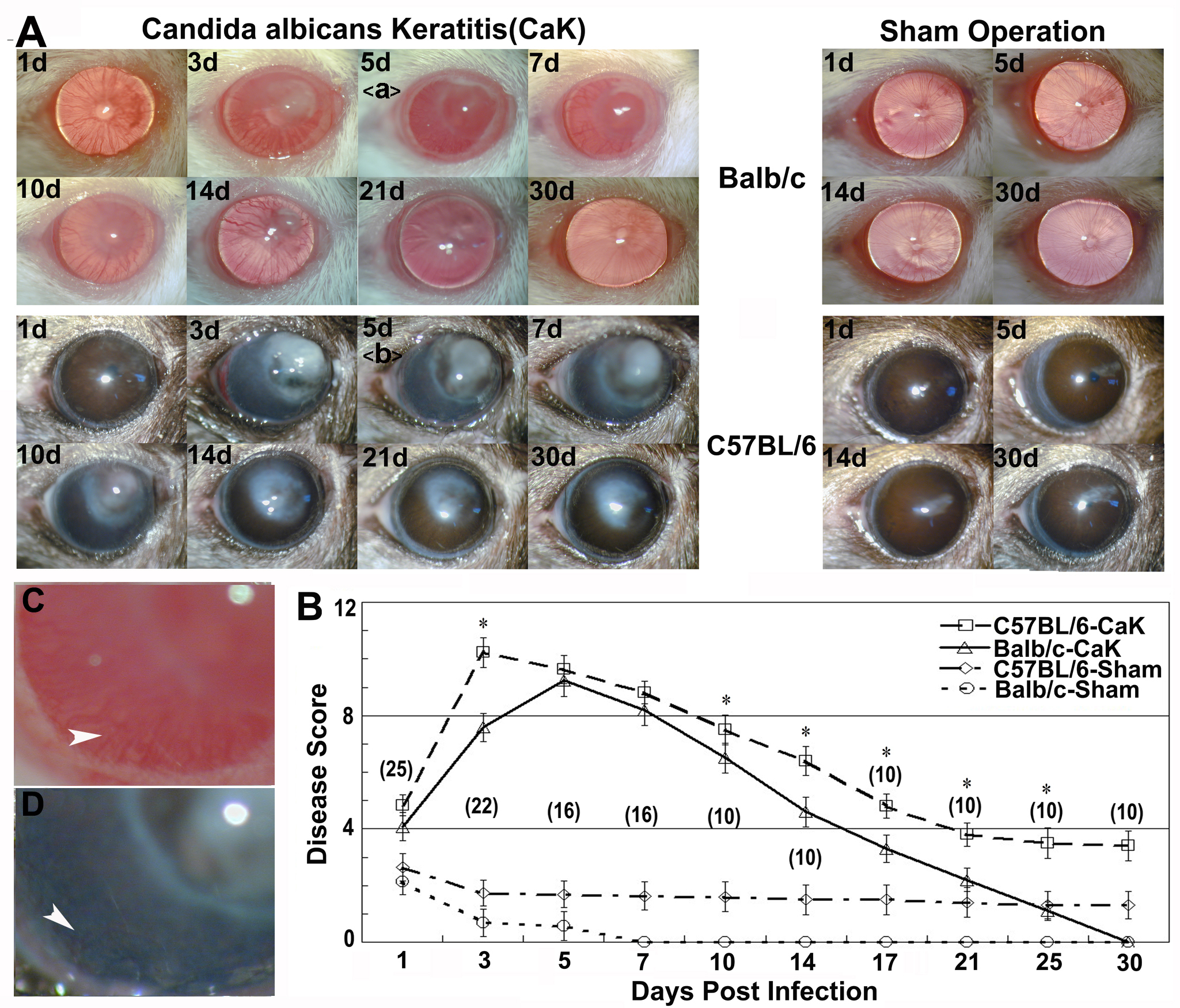

Figure 1. Differential courses of Candida albicans keratitis in Balb/c and C57BL/6 mice. Mice were inoculated with 1×105Candida albicans blastospores (CaK groups) or the same volume of saline buffer (sham infection). A: The corneas were monitored under slit lamp. The insets C and D showed details like transparency and neovascularization (arrow heads) at day 5. B: The diseases of the corneas were evaluated with the scoring system. The numbers of measured corneas in each group are given in parentheses in B.
