Figure 4 of Haddad, Mol Vis 2012; 18:1182-1188.

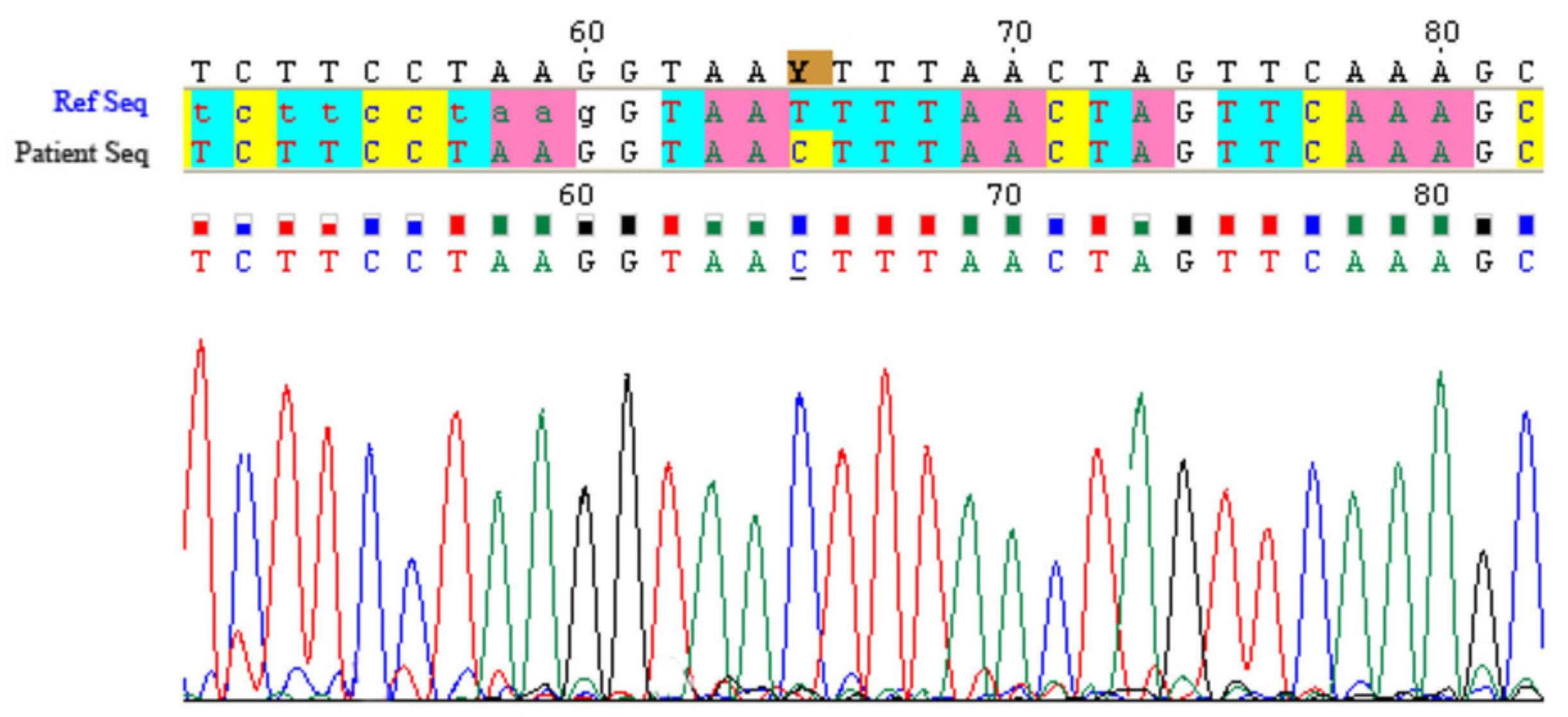

Figure 4. Electropherogram of the identified mutation: c.332T>C in the CYP4V2 gene. “Patient Seq” represents the affected individual sequence, homozygous for the mutation compared to the reference sequence “Ref Seq.”
