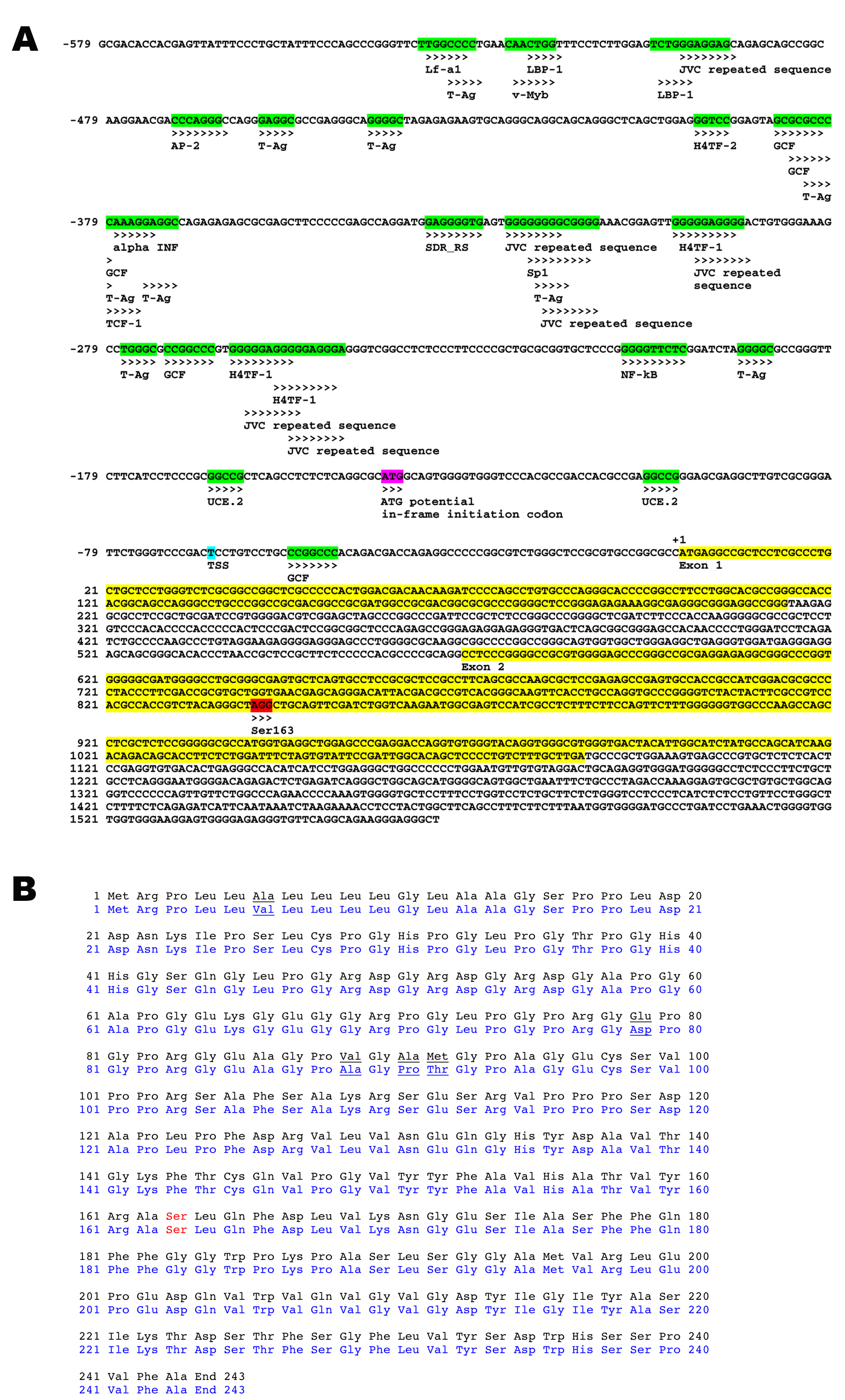

Figure 2. Genomic structure of pCTRP5
and protein homology of pig CTRP5 with the human protein. A:
The pCTRP5 was amplified from genomic DNA by PCR, cloned,
and sequenced. The pCTRP5 consists of two exons; its
coding sequence is highlighted in yellow, the Ser163 codon is
highlighted in red, a potential in-frame alternative start codon
is highlighted in pink, the transcriptional start site (TSS) is
highlighted in blue, and various transcription factor binding
sites are highlighted in green. B: The protein homology
between the pCTRP5 and hCTRP5 protein is represented. The pCTRP5
protein sequence is shown in black and the human in blue. The
underlined residues indicate the five amino acid differences
between the pig and human protein. The Ser shown in red
indicates residue 163.
