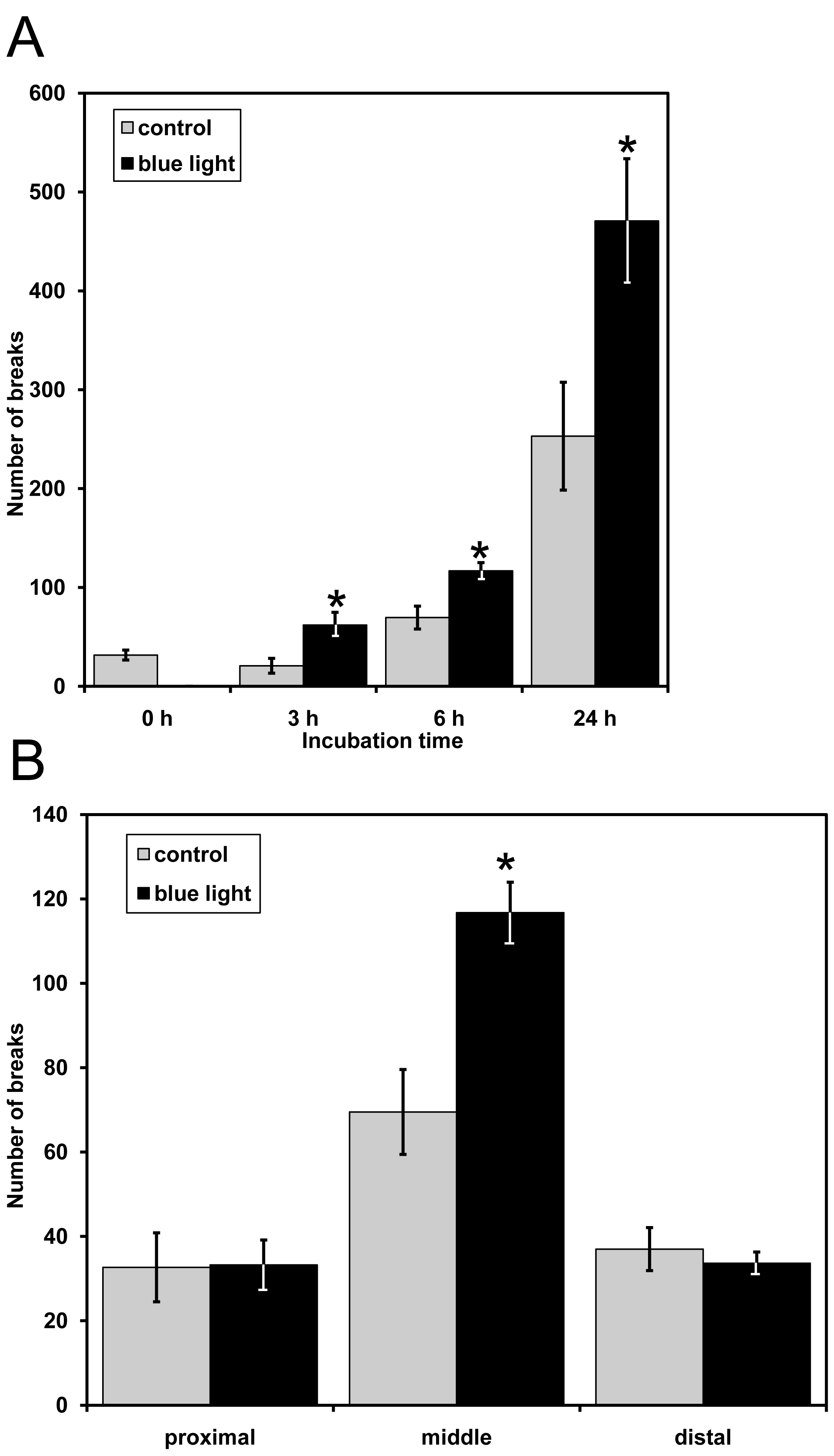

Figure 5. Membrane breaks in photoreceptor
outer segments are caused by blue light damage. Quantitative analysis
of breaks in the enveloping membrane of photoreceptor outer segments
was performed. Error bars represent the mean±standard deviation (SD)
from n=100 different outer segments. A: Eyeballs were exposed
to blue light for 3 h, 6 h, and 24 h. The graph displays the number of
breaks in the middle section of the outer segments. During the
prolonged incubation time, the number of breaks increased in treated
eyes but was consistently significantly higher than that observed in
time-matched controls (*p<0.05). B: Eyeballs were exposed to
blue light for 6 h. The graph displays the number of breaks in the
proximal, middle, and distal sections of the outer segments. The number
of breaks was significantly higher only in the middle section, compared
to that in the controls (*p<0.05).
