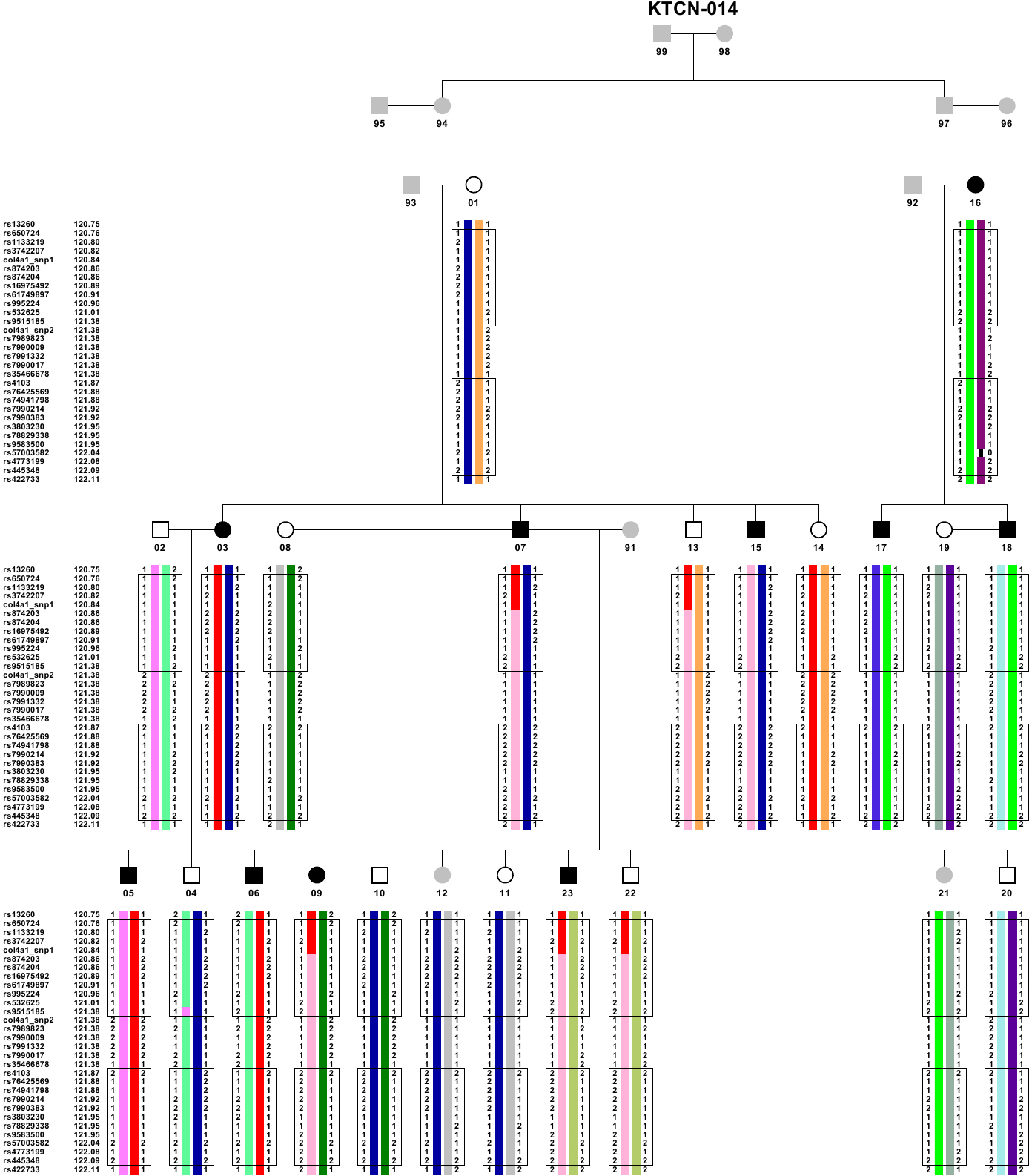

Figure 2. Pedigree of the family KTCN-014.
Black-filled symbols: individuals with KTCN; open symbols: individuals
without KTCN; gray-filled symbols: individuals with unknown KTCN
status. Below each symbol the haplotypes are shown for the coding
sequence in genes
COL4A1, COL4A2 and UTRs between them. In
COL4A1,
the
coding regions are surrounded by the markers
rs13260 and
col4a2_snp, and by
rs35466678
and
rs422733
in
COL4A2, which were marked by a black frame. Haplotype
regions in different colors indicate patterns of inheritance in the two
branches in the pedigree.
