Figure 4 of Kimura, Mol Vis 2011; 17:526-532.

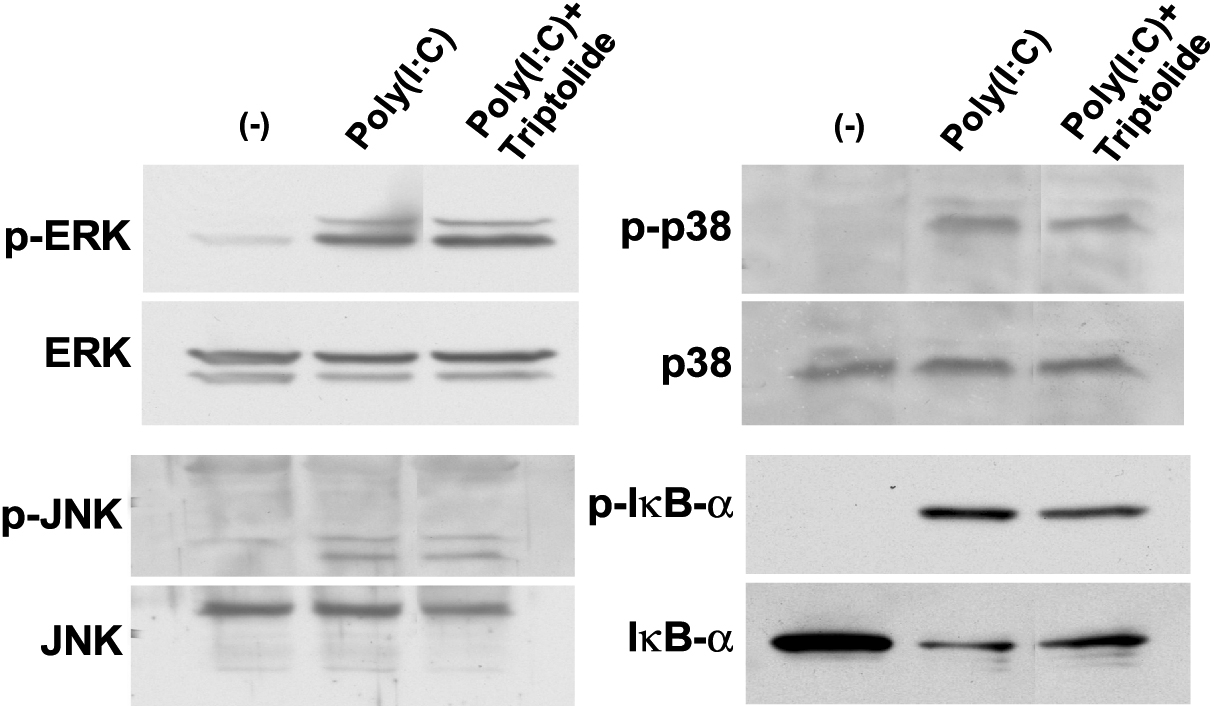

Figure 4. Effect of triptolide on the poly(I:C)-induced activation of MAPK and NF-κB signaling pathways in human corneal fibroblasts. Cells were incubated first for 1 h in the absence or presence of triptolide (10 pM) and then for 1 h in the additional absence or presence of poly(I:C) at 1 µg/ml. Cell lysates were then prepared and subjected to immunoblot analysis with antibodies to total or phosphorylated (p-) forms of ERK, p38, JNK, or IκB-α. Data are representative of three independent experiments.
