Figure 3 of Fan, Mol Vis 2011; 17:469-480.

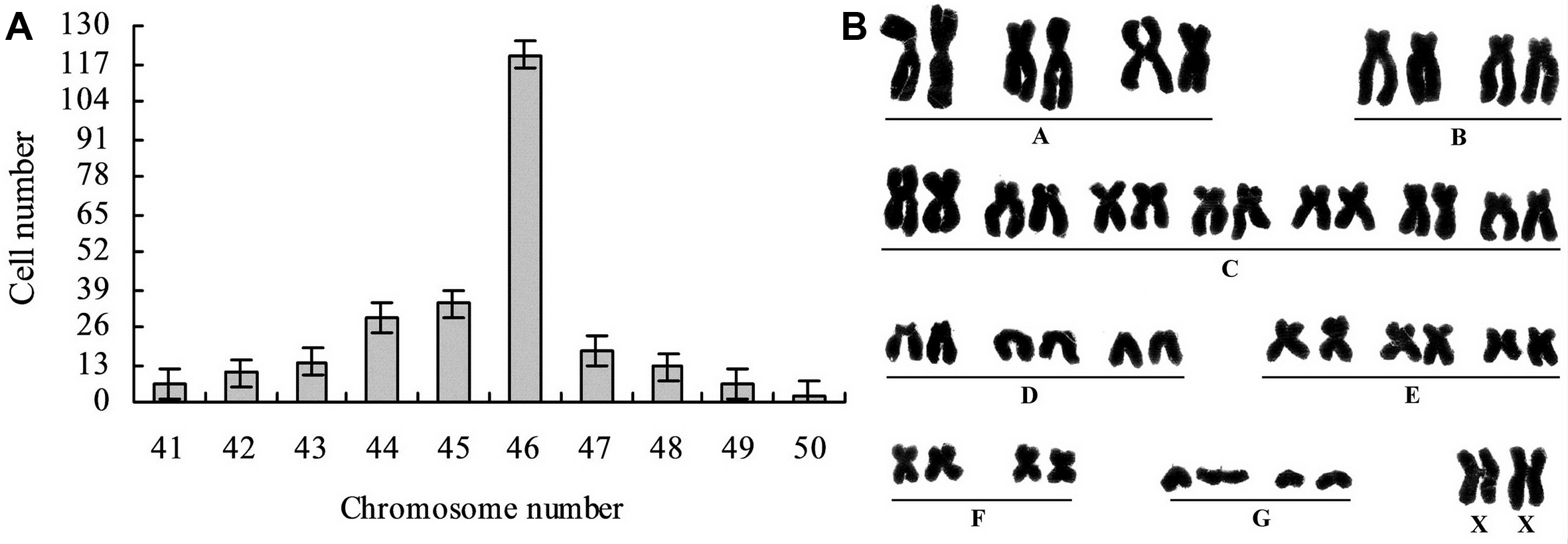

Figure 3. Chromosome analysis of HCE cells at passage 101. A: The HCE cells had chromosomal aneuploidy with chromosome numbers ranged from 41 to 50. Among them, HCE cells with chromosome number of 46 were about 47.8%. B: Diploid karyotype of a HCE cell with a chromosome number of 46.
