width="1200"Figure 14 of Anderson, Mol Vis 2011; 17:355-379.

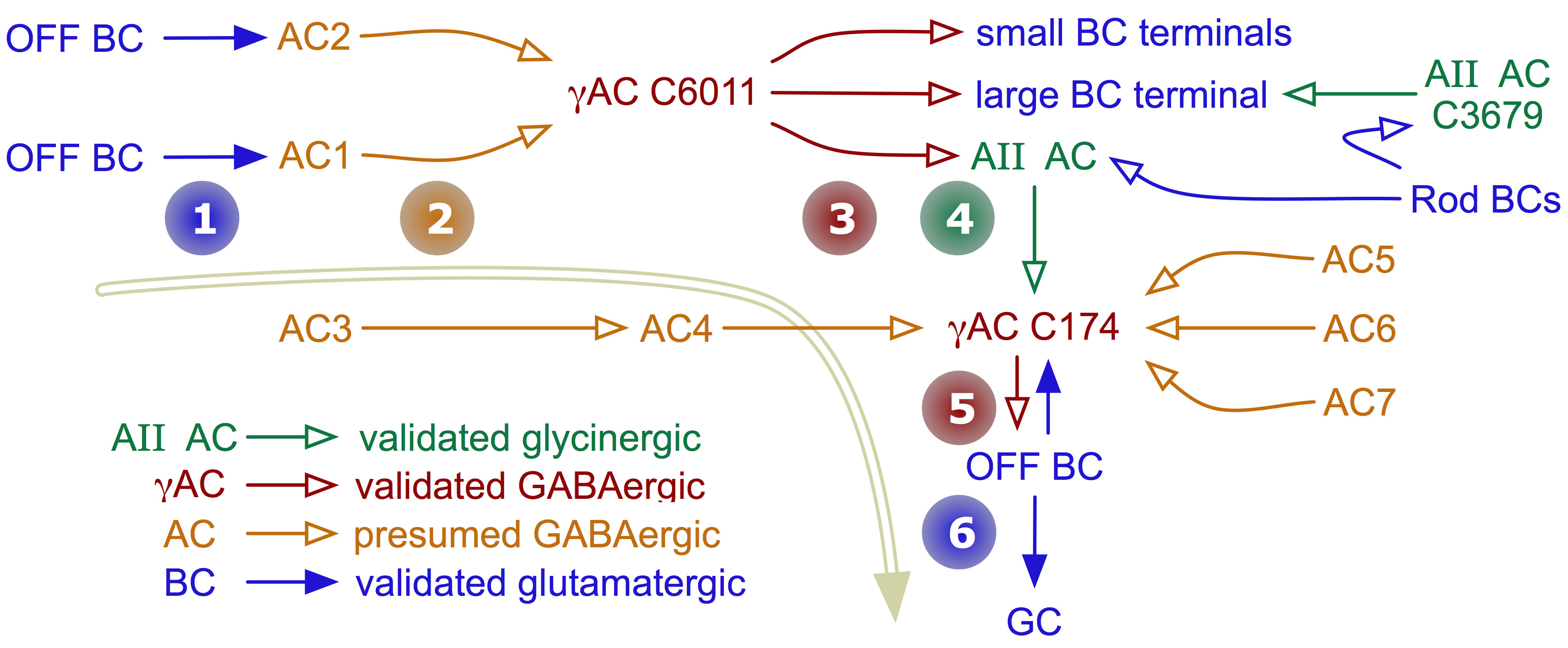

Figure 14. The rabbit inner plexiform layer contains synaptic chains up to six stages long. The chain starts with OFF cone bipolar cells (1) targeting two amacrine cells (2) that both converge on γ+ amacrine cell C6011. C6011 then targets two different classes of OFF cone bipolar cells and (3) a G+ AII amacrine cell, which then targets (4) γ+ amacrine cell C174, ultimately pre-synaptic (5) to another OFF cone bipolar cell that drives (6) a retinal ganglion cell.
