Figure 3 of Wankun, Mol Vis 2011; 17:3512-3522.

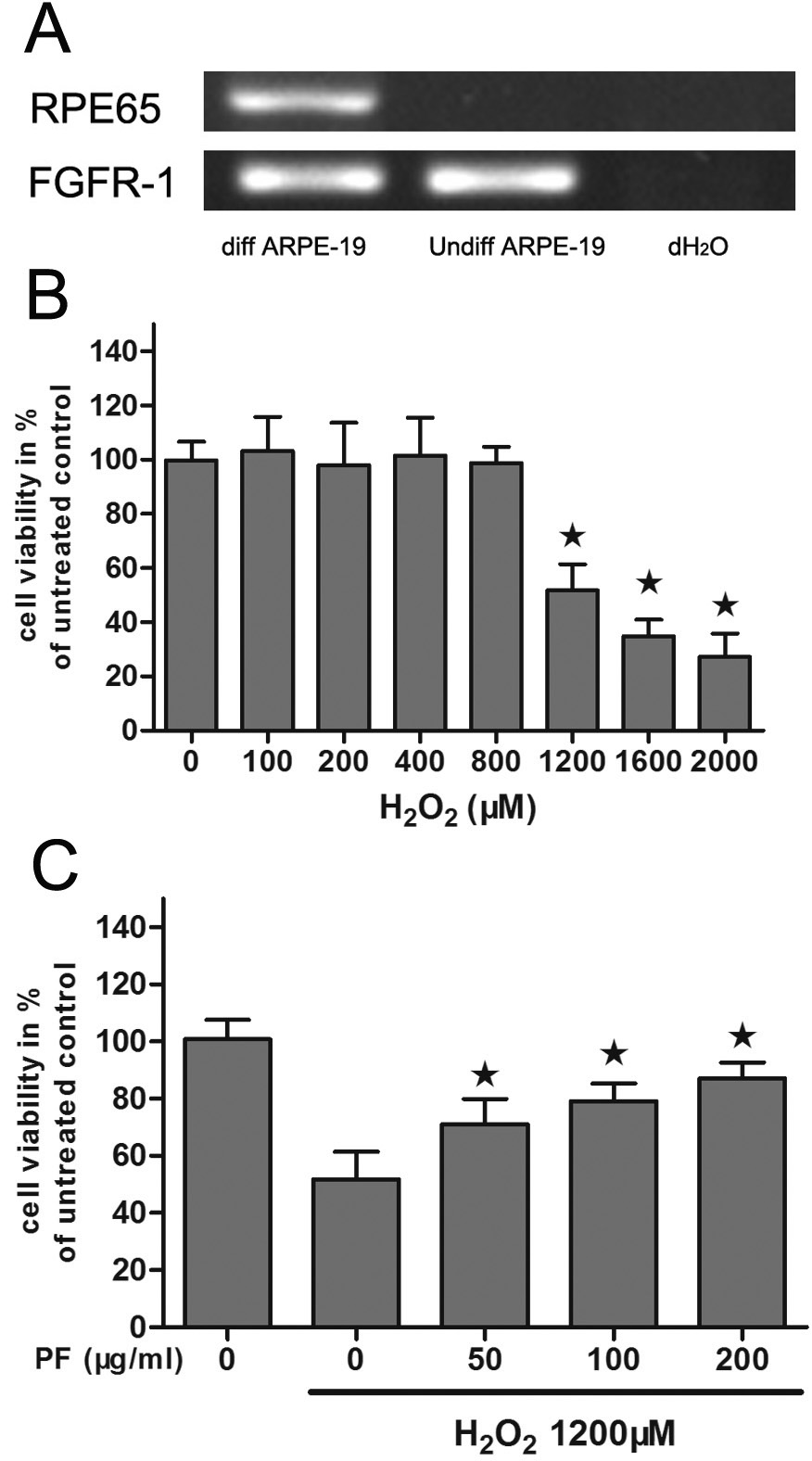

Figure 3. Protective effects of paeoniflorin (PF) on H2O2-induced differentiated ARPE-19 cells. A: Levels of retinal pigment epithelium 65 (RPE65) and fibroblast growth factor receptor-1 (FGFR-1) mRNA were measured by Reverse transcriptase PCR in undifferentiated (Undiff ARPE-19) and differentiated (Diff ARPE-19) ARPE-19 cells. Total RNA from undifferentiated or differentiated ARPE-19 cells was reverse transcribed and amplified using primers for RPE65 and FGFR1. A reaction omitting the cDNA was used as a negative control (NC). B: Cell viability of differentiated ARPE-19 cells following H2O2 exposure were measured by MTT assay. The cells were treated with or without different concentrations of H2O2 (100–2,000 μM) for 24 h. Cell viability was measured by an MTT assay. The results are expressed as percentage of control, and each value represents the mean±SEM of three independent experiments (n=3 experiments, *p<0.05). C: Cell viability was measured in differentiated ARPE-19 cells treated with 1,200 μM H2O2 or different concentrations of PF (50–200 μg/ml) by an MTT assay. The results are expressed as percentage of control, and each value represents the mean±SEM of three independent experiments (n=3 experiments, *p<0.05).
