Figure 5 of Zhou, Mol Vis 2011; 17:3415-3422.

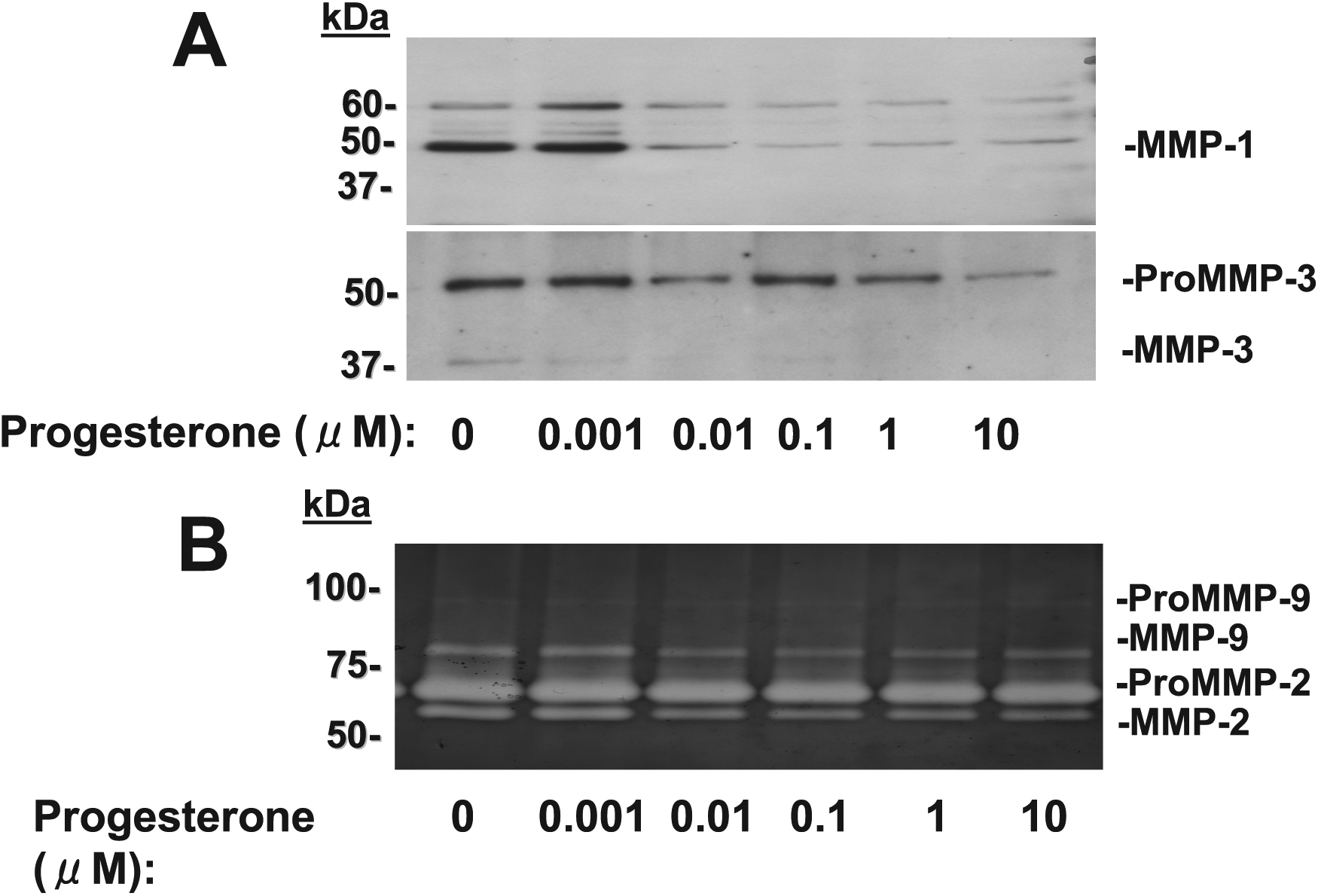

Figure 5. Effects of progesterone on MMP abundance and activity in culture supernatants of corneal fibroblasts stimulated with IL-1β. Cells were cultured in collagen gels in the presence of IL-1β (0.1 ng/ml) and the indicated concentrations of progesterone for 36 h, after which the culture supernatants were subjected to immunoblot analysis with antibodies to MMP-1 or to MMP-3 (A) or were analyzed by gelatin zymography (B). Similar results were obtained in three separate experiments.
