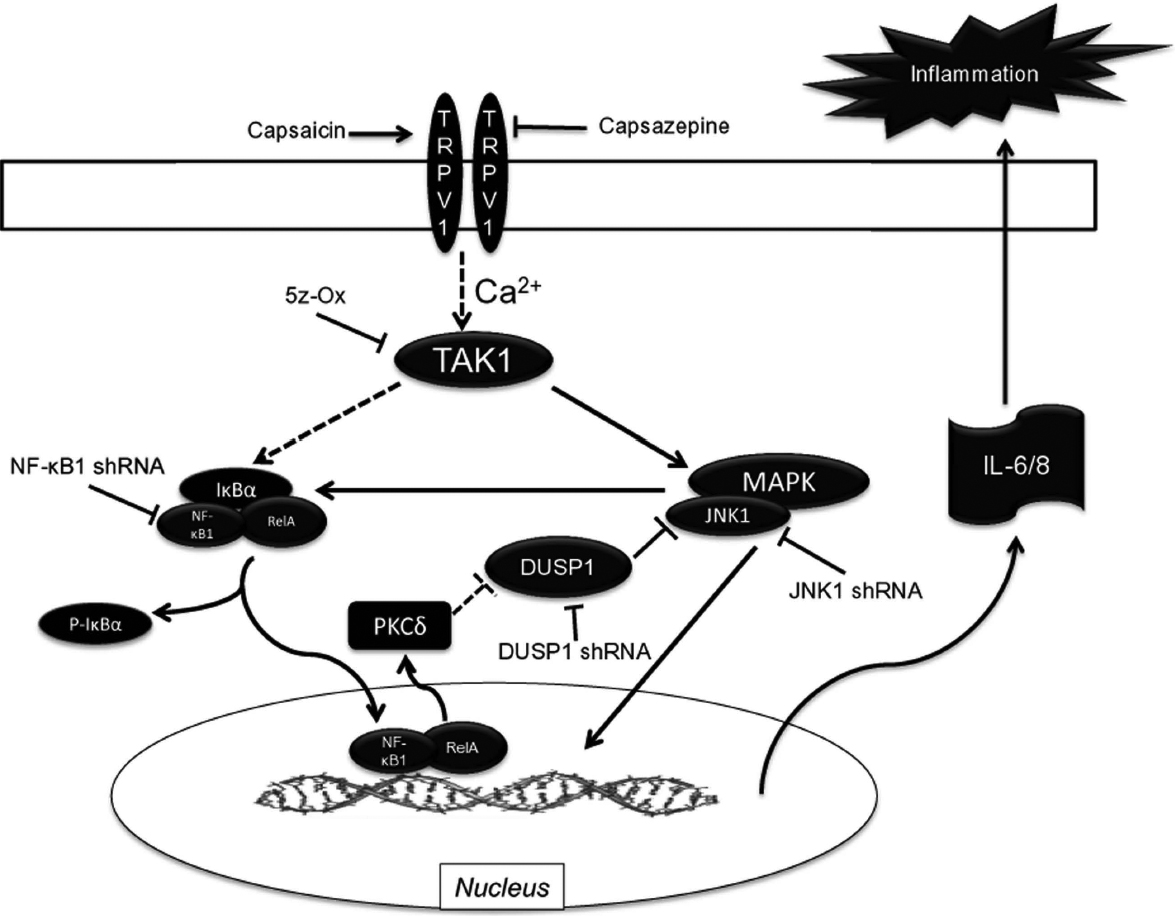

Figure 6. TRPV1-linked signaling
pathways mediating IL-6 and IL-8 release. TRPV1 stimulation
leads to TAK1-dependent JNK1 and NF-κB activation. Activated
JNK1 potentiates NF-κB activation by TAK1. NF-κB provides a
positive feedback control of JNK1 phosphorylation through
inhibition of DUSP1 expression, which is possibly controlled by
PKCδ. Activated NF-κB translocates to nucleus, along with other
transcription factors activated by p-JNK1 (e.g., AP-1) to
promote IL-6 and IL-8 mRNA expression. Solid line indicates
established interaction. Broken line represents unproven
interaction. Arrowhead means stimulation whereas hammerhead
represents inhibition. Arrow pointing from TAK1 to NF-κB is
broken since it is not yet known if interaction is direct or
there are signaling intermediates mediating NF-κB activation by
TAK1.
