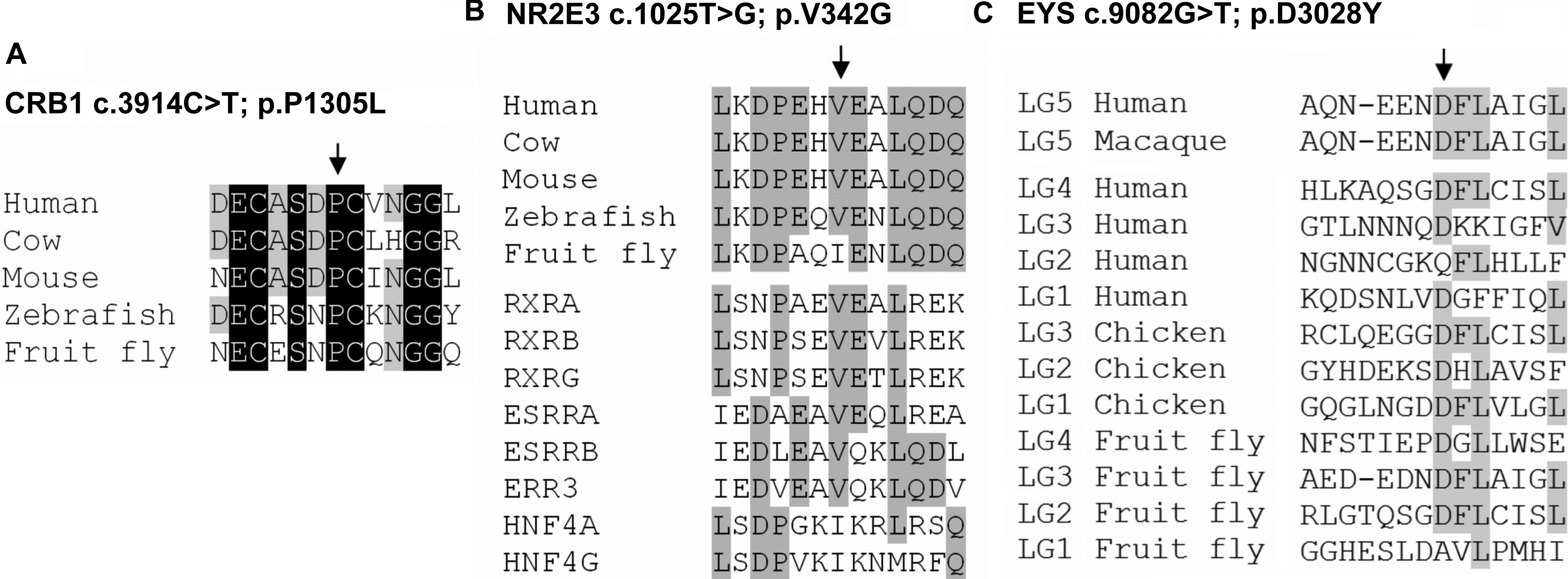

Figure 4. Sequence comparison of
amino acids mutated in Indonesian RP families. The mutated and
flanking amino acids, from orthologous and homologous protein
sequences, for A: CRB1 B: NR2E3 and C:
EYS. The arrows indicate the position of the mutated amino acid
residue in the alignment. Residues that are conserved in all
protein sequences are depicted in white on a black background,
whereas residues that are conserved in more than 50% of the
analyzed sequences are indicated in black on a gray background.
