Figure 2 of Hollborn, Mol Vis 2011; 17:2738-2750.

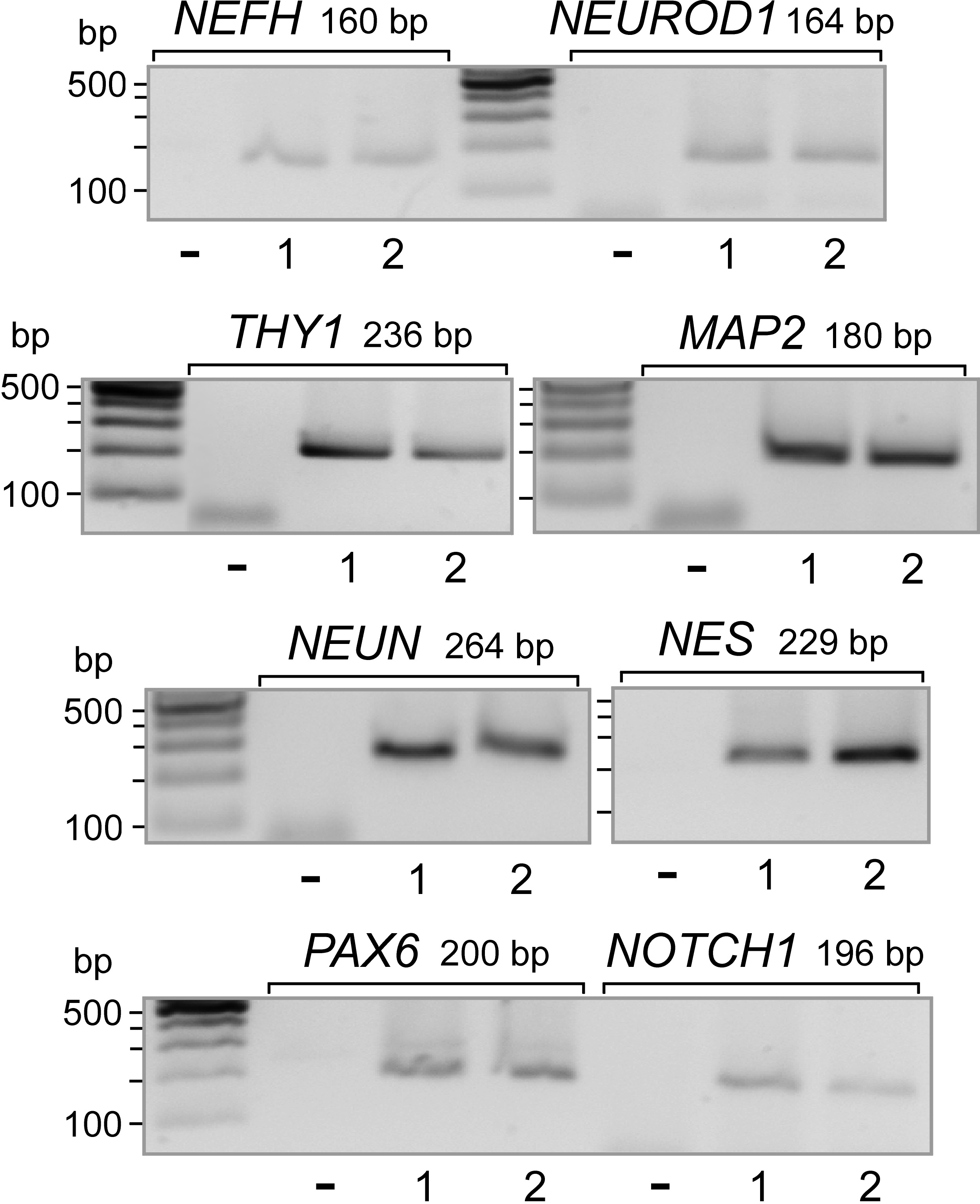

Figure 2. Expression of neuronal and stem cell marker genes in Moorfields/Institute of Ophthalmology-Müller 1 (MIO-M1) cells. The expression of the following neuronal genes was determined with reverse transcription PCR: Thy-1 (THY1), neurofilament heavy polypeptide (NEFH), neurogenic differentiation 1 (NEUROD1), microtubule-associated protein 2 (MAP2), and neuronal nuclei (NEUN). The expression of the following neural progenitor genes was determined: nestin (NES), paired-type homeobox transcription factor (PAX6), and neurogenic locus notch homolog protein 1 (NOTCH1). The data from two independent experiments (1, 2) are shown. The negative control (-) was done by adding double-distilled water instead of cDNA.
