Figure 6 of Gendron, Mol Vis 2011; 17:2596-2604.

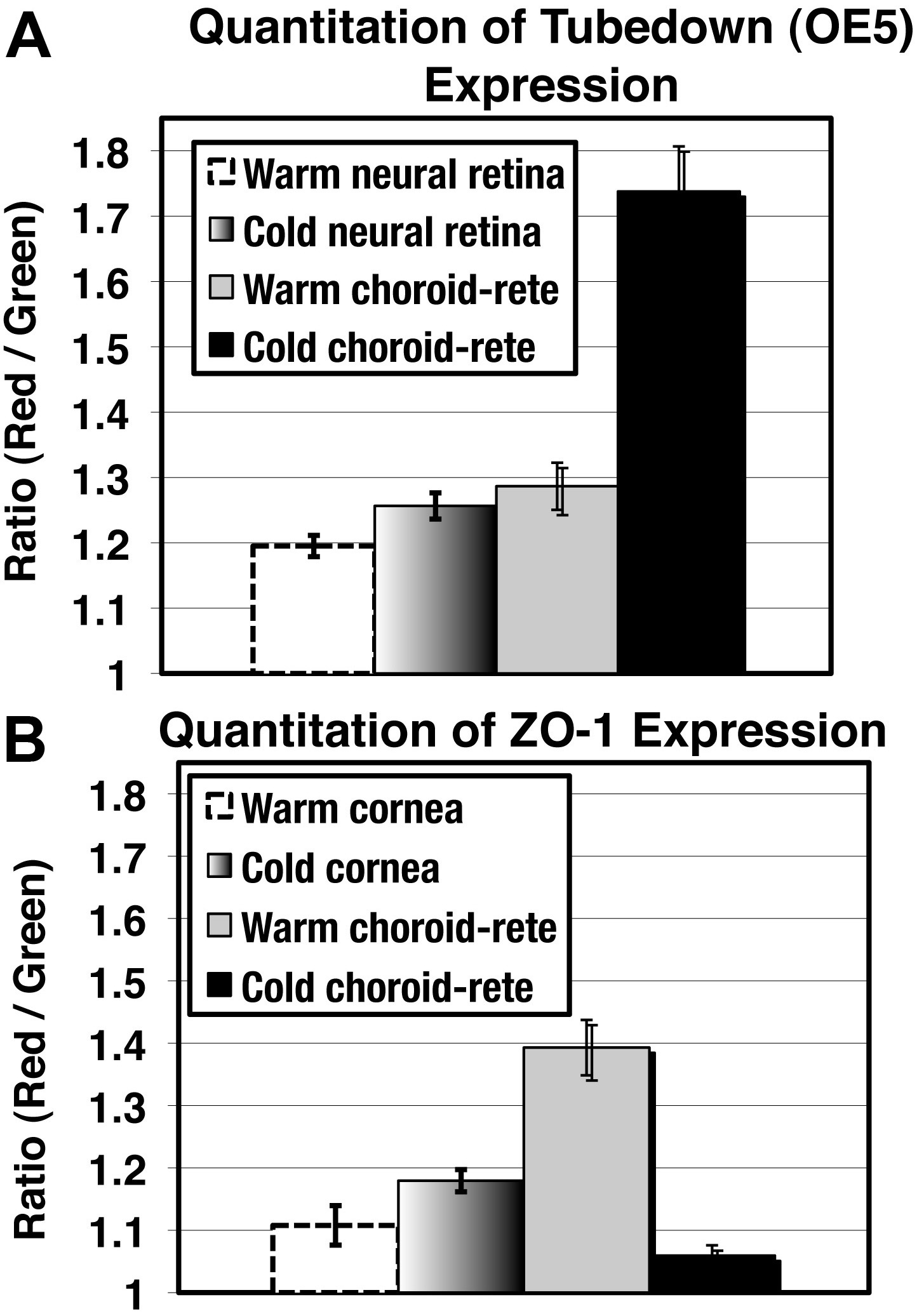

Figure 6. Quantitation of staining by a mouse anti-Tbdn antibody (A) and by a mouse anti-ZO-1 antibody (B) on smelt eye tissues. Compared to fish maintained at 8–10 °C (warm), there was a significant increase (p<0.001; n=15 color intensity measurements per group) in Tbdn staining of rete-choroidal blood vessels in the cold-adapted smelt (maintained at 0.5 °C [cold]), as shown in panel A. There was no significant difference in the staining of Tbdn in the neural retina. Compared to fish maintained at 8–10 °C (warm), there was a significant decrease (p<0.001; n=15 color intensity measurements per group) in ZO-1 staining of rete- choroidal blood vessels in the cold-adapted smelt (maintained at 0.5 °C [cold]), as shown in panel B. There was no significant difference in the staining of ZO-1 in the cornea.
