Figure 5 of Guduric-Fuchs, Mol Vis 2011; 17:2580-2595.

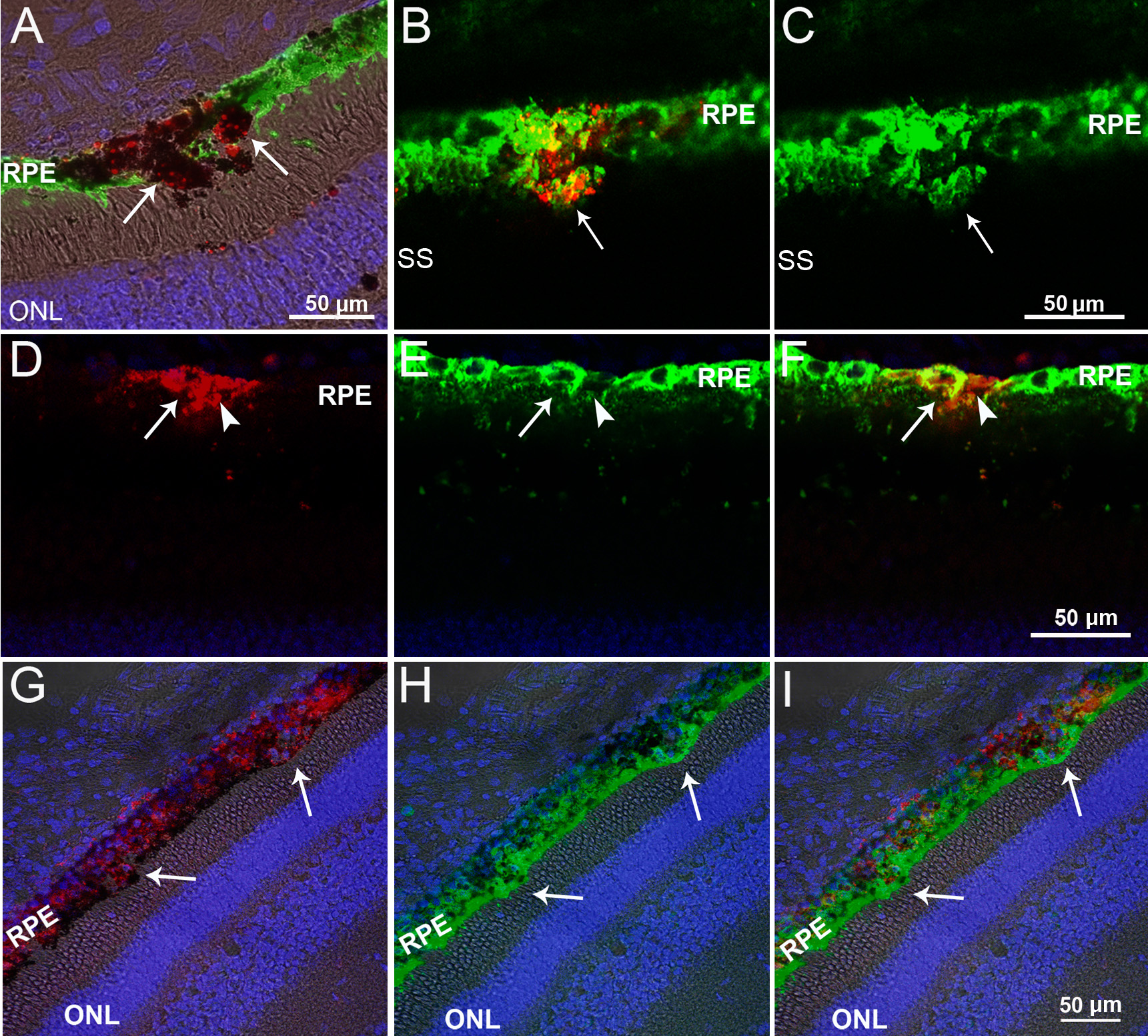

Figure 5. Microphotographs of red CM-DiI-labeled ciliary epithelium (CE)-derived cells in the retinal pigment epithelium (RPE) layer. A: Red-labeled pigmented CE-derived cells localized to the RPE layer, which were negative for RPE65 (arrows). B: At the same time point, transplanted red-labeled RPE65-positive cells were also found (red and green merged in B and green RPE65 labeling only in C, arrows). D-F: Two weeks following transplantation, CM-DiI-labeled cells in the RPE layer were strongly (arrow) and weakly (arrowhead) positive for RPE65. G-I: Four weeks after transplantation, the RPE appeared uneven and multilayered (arrows). Nuclei are labeled with 4',6-diamidino-2-phenylindole (DAPI; blue). Bright-field images are merged with the dark field in A, G, H, and I. Subretinal space (SS); and outer nuclear layer (ONL).
