Figure 3 of Sen, Mol Vis 2011; 17:2552-2563.

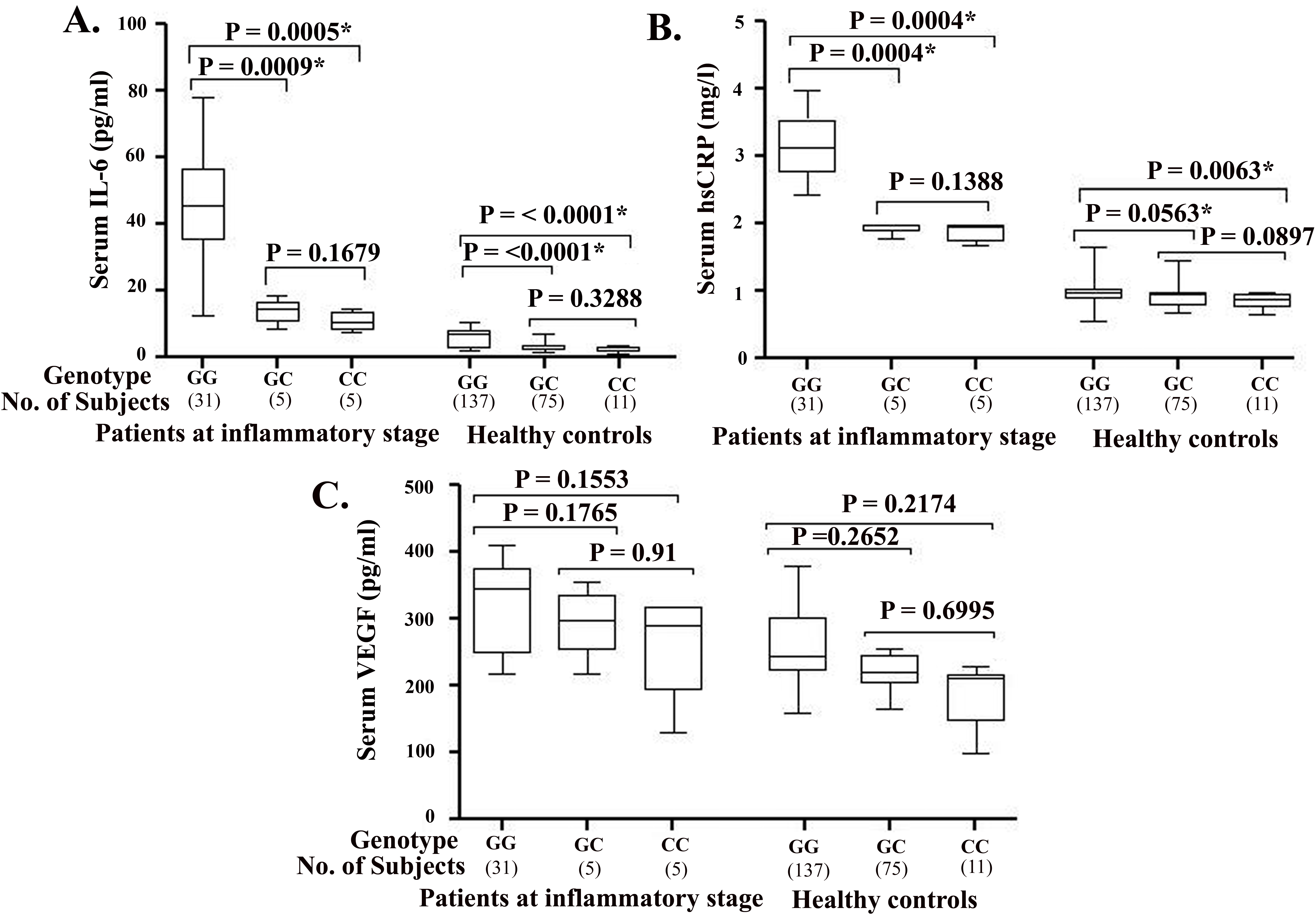

Figure 3. Serum protein concentration in study subjects according to −174G/C genotype. Serum concentrations of: A: interleukin-6 (IL-6), B: high-sensitivity C-reactive protein (hsCRP), and C: vascular endothelial growth factor (VEGF) in patients with Eales’ disease (ED) at the inflammatory stage, as well as the healthy controls, for each −174G/C genotype. The Mann–Whitney U test was performed to determine whether significant differences were present within the same groups of subjects with different −174G/C genotypes. The results of this analysis are indicated in brackets. An asterisk denotes a significant p value.
