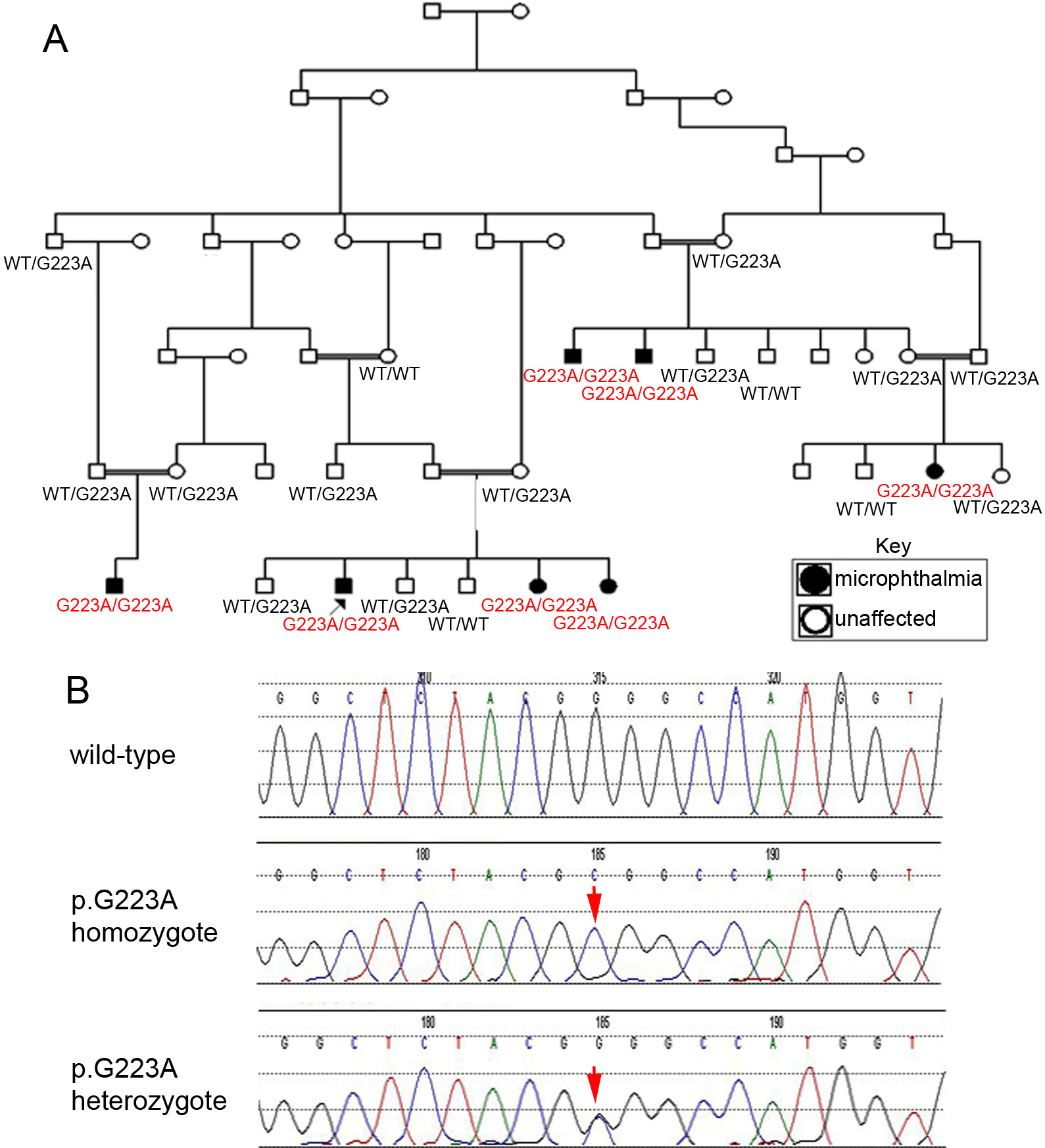

Figure 1. Pedigree and VSX2
sequencing results for Patient 1 and family members. A:
Patient 1 is indicated with a black arrow. VSX2 genotype
is indicated for each family member tested; genotypes of
affected individuals are shown in red. WT, wild type. B:
Mutation Surveyor view of forward VSX2 sequencing data
are shown; the position of the mutation is indicated with an
arrow.
