Figure 1 of Zhang, Mol Vis 2011; 17:2139-2147.

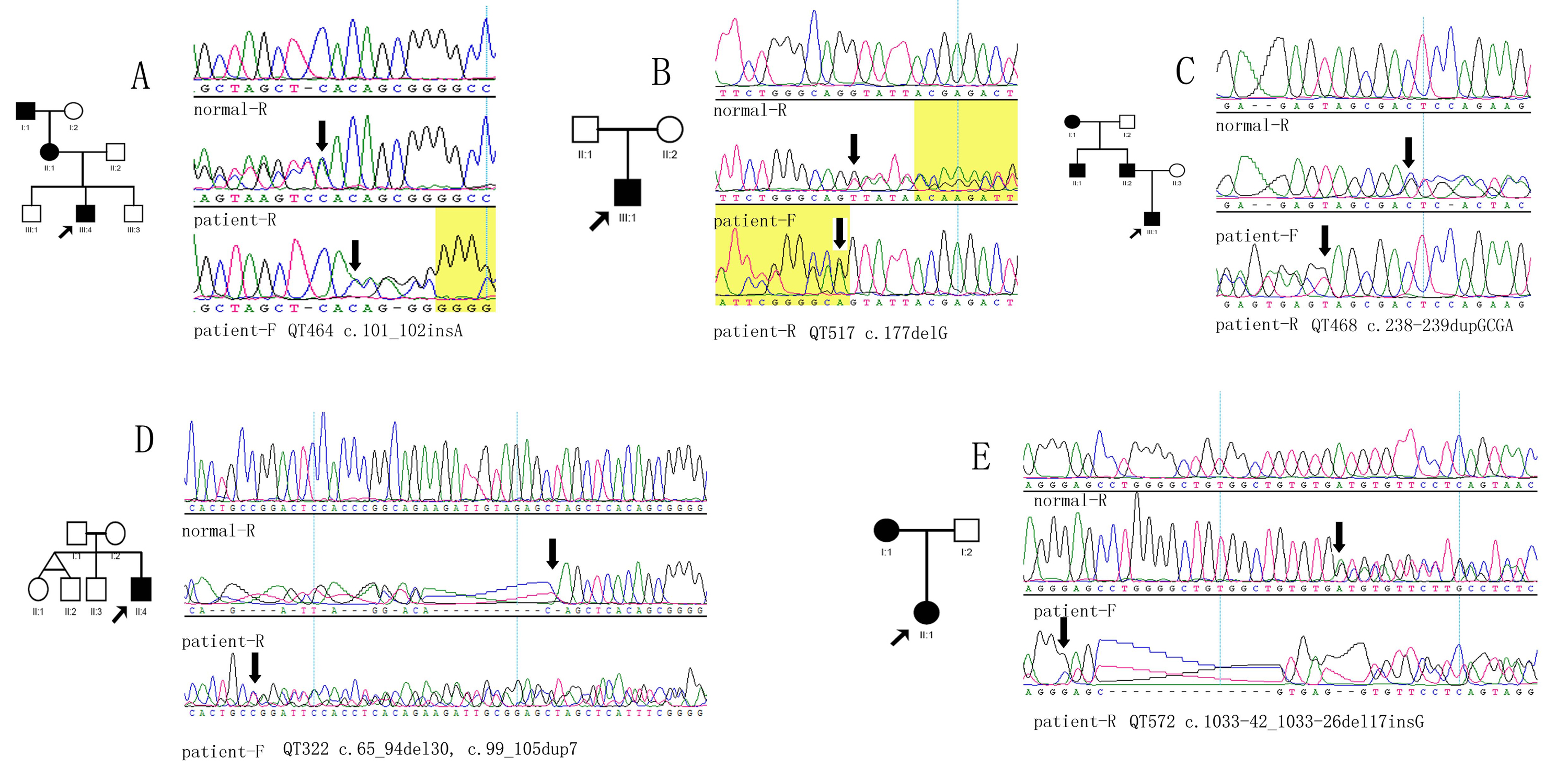

Figure 1. Frameshift mutations detected in PAX6. Five novel deletion/insertion mutations were identified in five probands with aniridia from unrelated families. Pedigrees (left) are accompanied with sequence chromatography (right). Arrows indicate the probands. R represents reverse sequence.
