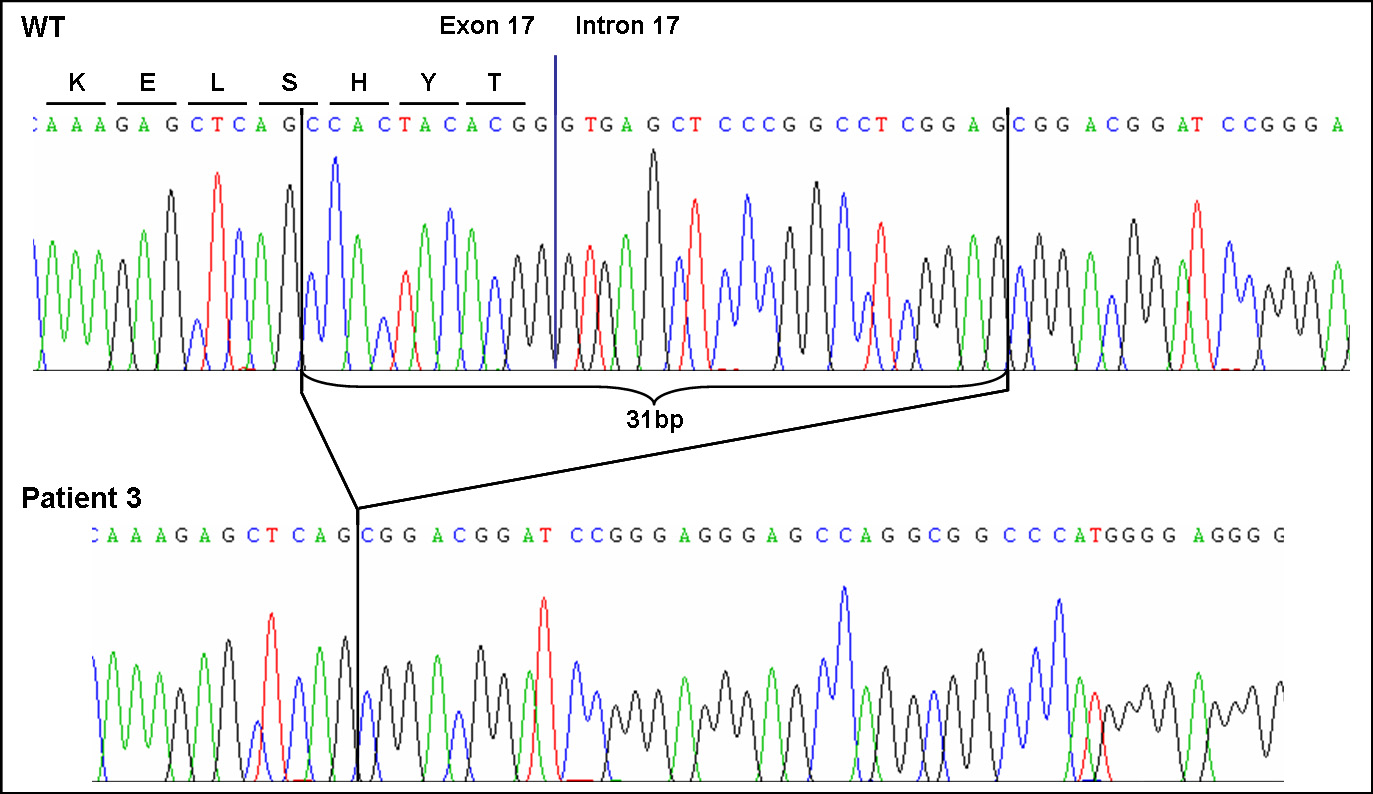

Figure 6. Sequencing chromatogram of the
mutation c.2769_2779del11, 2779+1_+20del20 of the ROBO3 gene.
The homozygous deletion of 31 bp of the ROBO3 gene in patient 3
includes the splice donor site of exon 17 and most probably leads to an
altered splicing.
