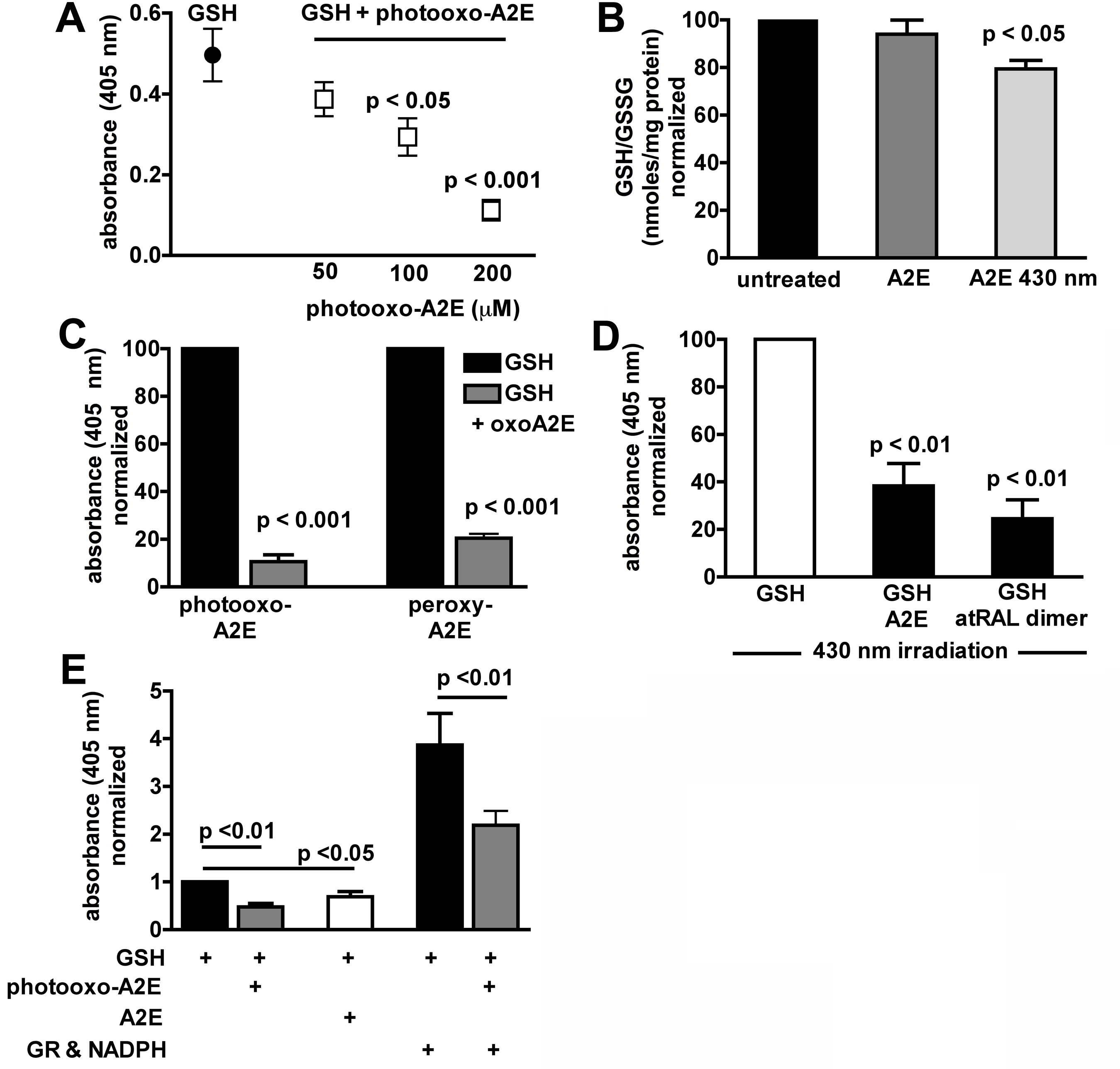

Figure 1. Reaction of photooxidized
bisretinoid with glutathione and glyceraldehyde-3-phosphate
dehydrogenase. Data are mean±standard error of mean (SEM) of 3–5
experiments. A: Incubation of glutathione (GSH) with
photooxidized-A2E (photooxo-A2E) results in a concentration-dependent
decrease in GSH-mediated reduction of 5,5′-dithiobis-2-nitrobenzoic
acid (DTNB) to 2-nitro-5-thiobenzoic acid (TNB). Background absorbance
(DPBS) and absorbance values for photooxo-A2E samples alone were
subtracted. B: Total glutathione (GSH/GSSG) in ARPE-19 cells
that had accumulated A2E and were exposed to 430 nm light. Total
glutathione was measured in a DTNB-based assay in the presence of
glutathione reductase and nicotinamide adenine dinucleotide phosphate
(NADPH), and values were normalized to untreated controls. C:
Incubation of GSH (650 µM) with photooxo-A2E and peroxy-A2E (100 µM)
diminishes the ability of GSH to subsequently reduce DTNB to TNB. DPBS
and absorbance values for photooxo-A2E and peroxy-A2E alone were
subtracted and data were normalized to GSH control. D: A2E and
all-trans-retinal dimer were irradiated in the presence of GSH,
after which DTNB was added. The background was subtracted and values
normalized to the GSH control. E: Prior incubation of GSH with
photooxo-A2E decreases the ability of GSH to reduce DTNB even in the
presence of GSH reductase (GR) and NADPH. DPBS and absorbance values
for photooxo-A2E samples alone were subtracted and data were normalized
to GSH only.
